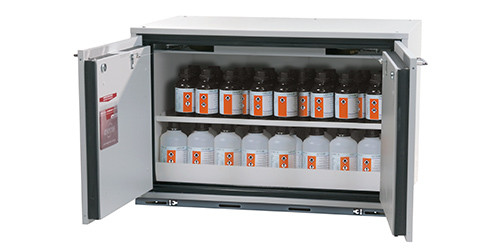

safety storage under bench cabinet type tested in accordance with EN 14470-1 model UB90.060.089.2T
(castors with plinth are available on request)

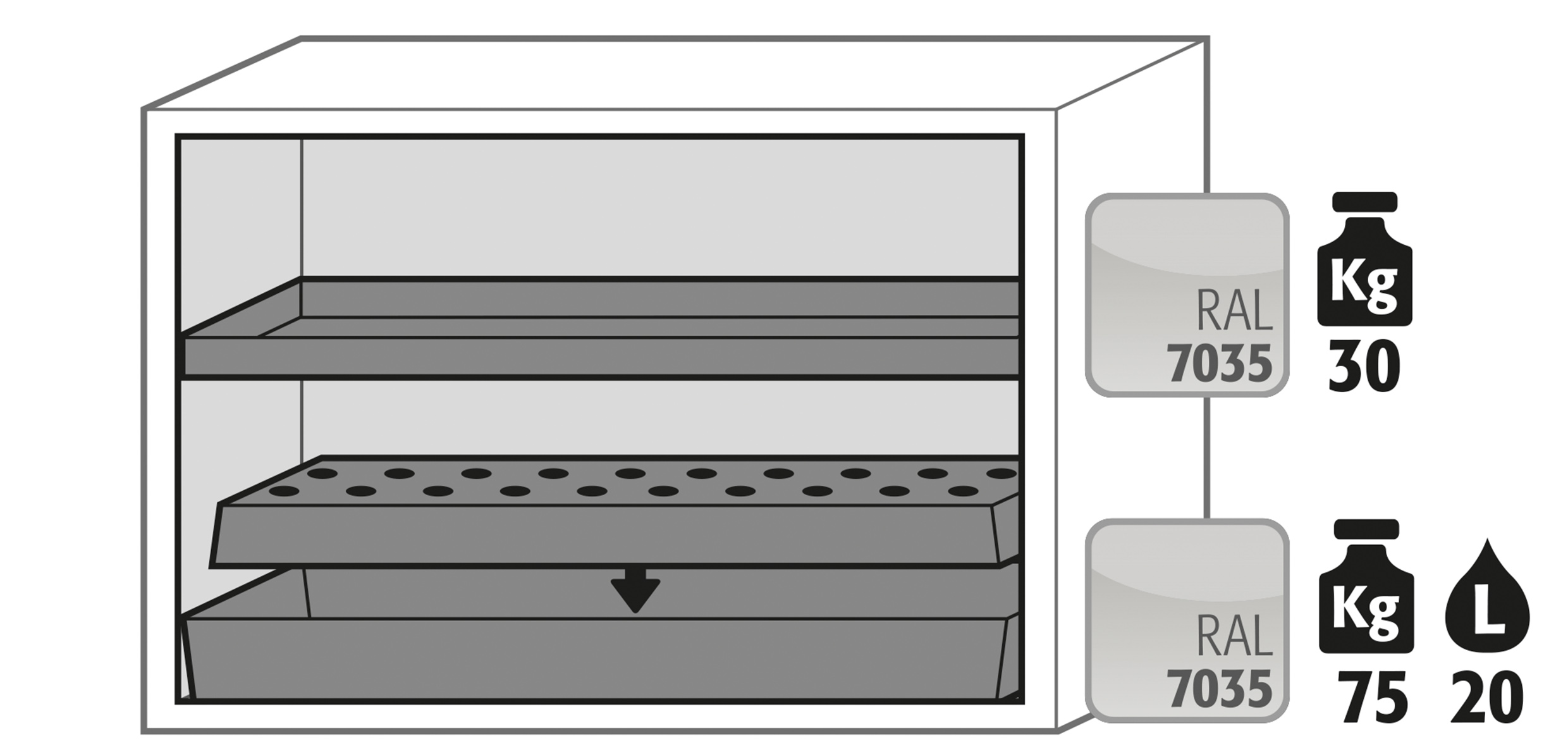

light grey (RAL 7035), interior equipment with 1 x shelf, 1 x perforated insert, 1 x bottom collecting sump (sheet steel powder-coated)
Certification
- Fire resistance 90 minutes
- type tested in accordance with EN 14470-1
- DIN EN 16121/16122 conformity
- GS certified
- CE compliant
Function / construction
- Robust construction and longevity: body made of powder-coated sheet steel
- Easy handling with comfort: doors stop in any position, self-closing in the event of fire
- User-friendly: access to all containers, 93° opening of the wing door, interior of the cabinet completely visible
- No unauthorised use: doors lockable with cylinder lock and locking state indicator (red/green)
- Mobile: castors with plinth (optionally available), easy moving of the cabinet
- Ventilation: integrated air ducts ready for connection (DN 50) to a technical exhaust system
Your selected product
Order No.
30464-001-33768
* Information on Delivery and Price
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances . If you are unsure, the asecos experts will be happy to help you further.
stainless steel | perforated insert, bottom collecting sump
stainless steel | shelf, perforated insert, bottom collecting sump
sheet steel | perforated insert, bottom collecting sump
sheet steel | shelf, perforated insert, bottom collecting sump
stainless steel | perforated insert, bottom collecting sump
stainless steel | shelf, perforated insert, bottom collecting sump
1x perforated insert, 1x bottom collecting sump (V=20.0L)
1x shelf, 1x perforated insert, 1x bottom collecting sump (V=20.0L)
Did you know ...
... that our experts are always available to advise you?Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
... that you can find everything you need to know about storing hazardous materials in a compact brochure? Further information is available at www.asecos.com.
Technical Data
| External dimensions W x D x H | 893 x 574 x 600 mm |
| Internal dimensions W x D x H | 771 x 452 x 502 mm |
| Extraction air connection | 50 DN |
| Number of storage levels | 2 piece |
| CE compliant | Yes |
| Differential pressure (10 times air change EK5/AK4) | 1 Pa |
| ecl@ss 14.0 | 40-06-01-04 |
| Fire resistance level | 90 minutes |
| Depth with open doors | 992,00 mm |
| GTIN | 4054923137776 |
| GS certified | Yes |
| Minimum exhaust air quantity 10 times | 2 m³/h |
| Net weight configuration | 153,00 kg |
| According to standard | EN 14470-1 |
| According to standard | EN 16121/16122 |
| Max. load of shelves | 30.00 kg |
| Max. load of perforated insert | 75.00 kg |
| Automatic door closing system | No |
| Door open arrest system | No |
| Door opening angle | 93 ° |
| UL 1275 listed | no |
| UNSPSC code | 24112402 |
| Capacity of bottom collecting sump | 20.00 litres |
| Customs tariff number | 94032080 |
| Weight | 165,5 kg |
| Material of storage levels | sheet steel |
