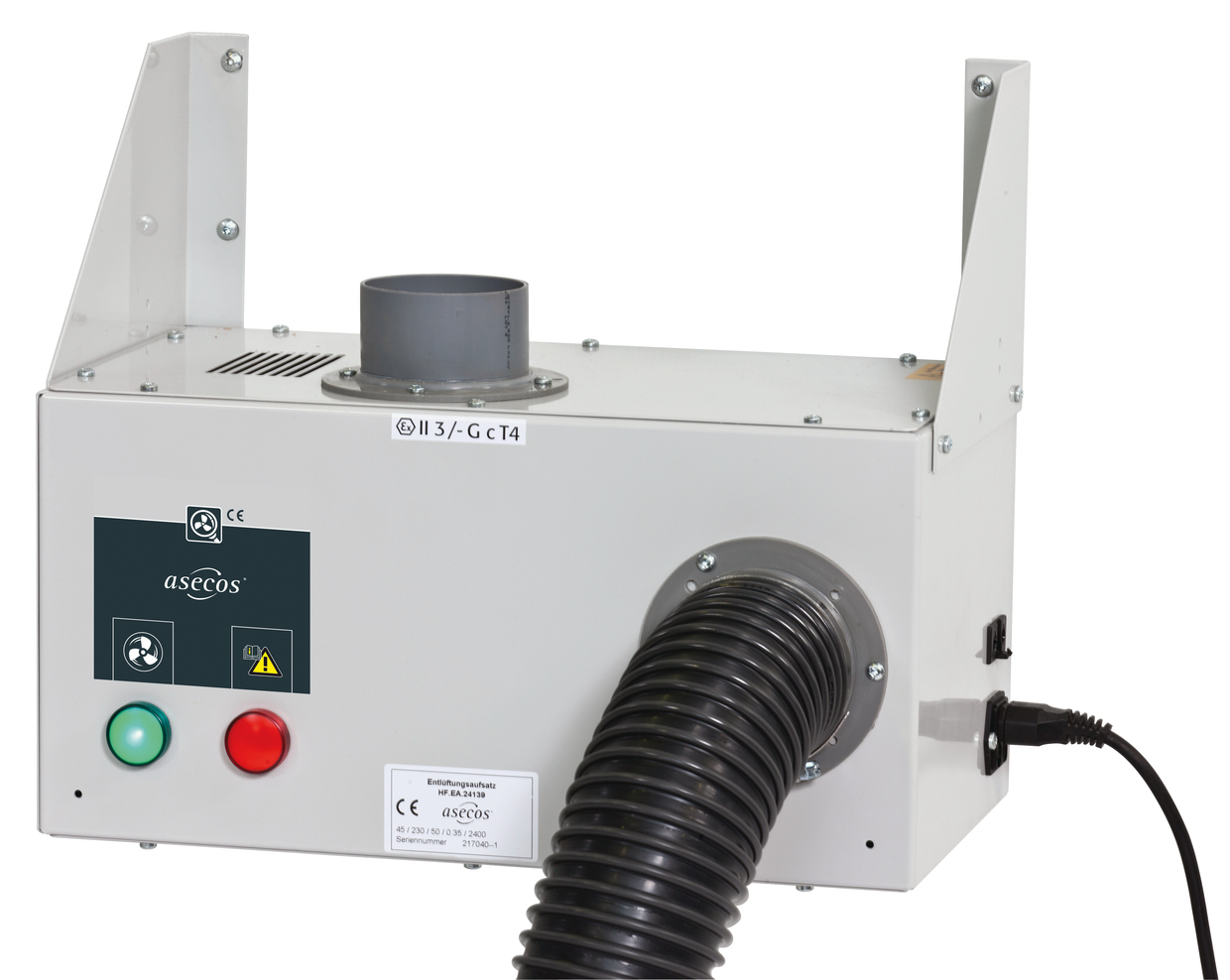

Extraction unit with exhaust air monitoring
Safe capturing of escaping vapours and gases at the point where they are released or produced
- Very low noise, ideal for direct installation at the workplace
- With connection cable and power cord
- Connecting fitting DN 75
- ATEX compliant: CE II 3/-G Ex ic nA IIB T4 Gc
Potential free alarm contact
Additionally available for units with extraction air monitoring
With extraction air monitoring
- Integrated pressure leak detector
- The green LED turns off in case of failure and the red LED lights up
- For under bench cabinets, for wall mounting
- Appropriate for Safety storage cabinet for flammable liquids, Cabinet for acids and alkalis
- powder-coated sheet steel
- W x D x H (mm): 400 x 200 x 340
Your selected product
Order No.
24732
* Information on Delivery and Price
For parcels or general cargo delivery, delivery usually takes place within one week of the delivery date. When shipping via a special shipping company (for safety cabinets and hazardous substance workstations), delivery takes place regularly, once all the necessary delivery information (e.g. checklists) is available, on average within 10 working days.

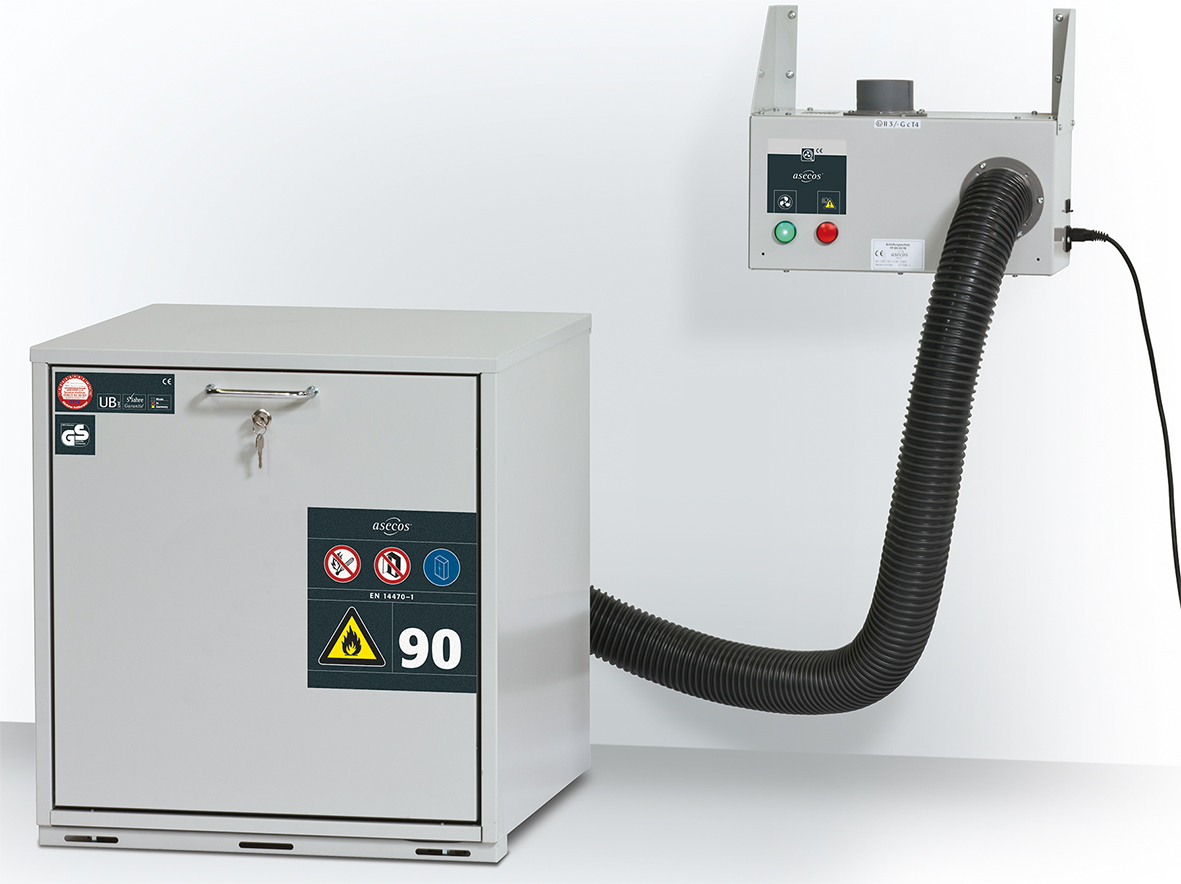

Extraction unit with exhaust air monitoring for wall mounting, for under bench cabinets
Extraction unit with exhaust air monitoring for wall mounting, for under bench cabinets
Scope of services Delivery free of charge (LFH):
- Delivery included Packaging material up to behind the first locked door at ground level
- on a disposable pallet (without climbing steps, stairs, etc.)
Did you know ...
... that our experts are always available to advise you?Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
...why is technical ventilation of safety storage cabinets so important? You can find all the information you need about explosion zones, occupational safety and legal requirements in our flip catalogue.
Technical Data
| External dimensions W x D x H | 400 x 200 x 340 mm |
| Weight | 12 kg |

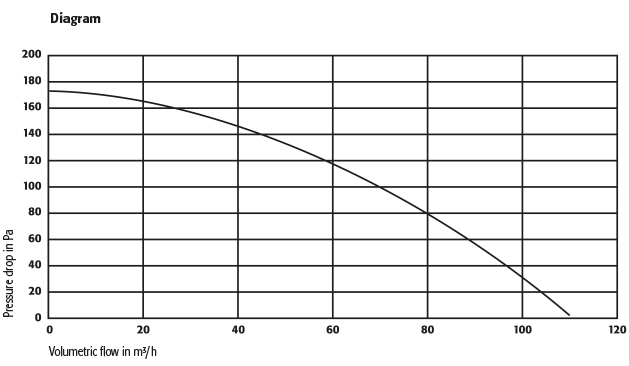

| Differential pressure | 200-20 Pa |
| Nominal Power Consumption | 45 W |
| Nominal voltage | 230 V |
| Speed | 2.400 rpm |
| Emission sound pressure level | 35 dB |
| Maximum current consumption | 0,35 A |
| Frequency | 50 Hz |
| Potential-free alarm contact | Yes |
| ATEX label | II 3/-G Ex ic nA IIB T4 Gc |
| explosion-proof | Yes |
| exhaust air monitoring | Yes |
| ecl@ss 14.0 | 22-41-90-90 |
| ecl@ss 11.0 | 22-41-90-90 |
| Customs tariff number | 84145100 |
| GTIN | 4250101146985 |
