Safety assistance system module
Safety Assistance System SAS
for permanent monitoring of safe and energy-efficient storage of hazardous substances
- Maximum safety through permanent monitoring of the technical ventilation (explosion protection and protection of employee health)
- High energy efficiency thanks to control of extract air demand according to technical necessity
- For safety cabinets according to EN 14470-1
- Can only be installed ex works
- Permanent detection of the exhaust air volume flow by integrated differential pressure measurement with electronic evaluation

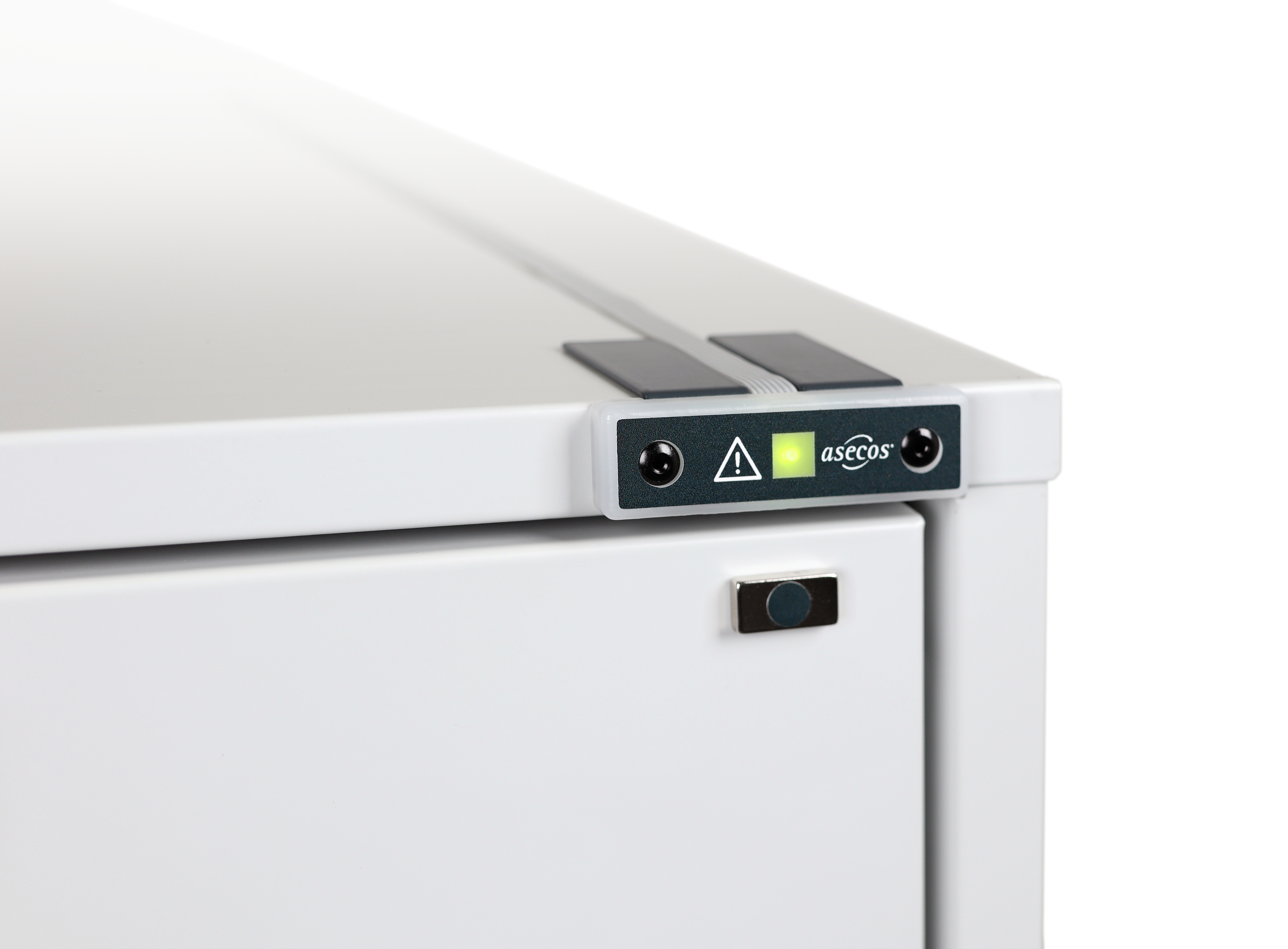

- Visual alarm when the minimum exhaust air volume flow is not reached and when doors or pull-outs are not fully closed
- Potential-free alarm contact for central monitoring
- Battery back-up in case of power failure (optional)
- Measuring connection for targeted setting of an energy-efficient extract air volume flow rate
- For cabinets in the UB-LINE model range
- Minimum air exchange rate is 10 times per hour
Your selected product
Order No.
39710
* Information on Delivery and Price
For parcels or general cargo delivery, delivery usually takes place within one week of the delivery date. When shipping via a special shipping company (for safety cabinets and hazardous substance workstations), delivery takes place regularly, once all the necessary delivery information (e.g. checklists) is available, on average within 10 working days.
SAS for safety cabinets according to EN 14470-1
SAS for under bench cabinets according to EN 14470-1
SAS for gas cylinder cabinets in accordance with EN 14470-2
Scope of services Delivery free of charge (LFH):
- Delivery included Packaging material up to behind the first locked door at ground level
- on a disposable pallet (without climbing steps, stairs, etc.)
Did you know ...
Technical Data
| Weight | 0,4 kg |
| Min. volume flow | 10 m³/h |
| Max. volume flow | 150 m³/h |
| Nominal Power Consumption | 23 W |
| Nominal voltage | 230 V |
| Maximum current consumption | 0,1 A |
| Frequency | 50/60 Hz |
| Potential-free alarm contact | Yes |
| exhaust air monitoring | Yes |
| ecl@ss 11.0 | 27-14-32-34 |
| Customs tariff number | 94032080 |
| GTIN | 4250101190162 |
