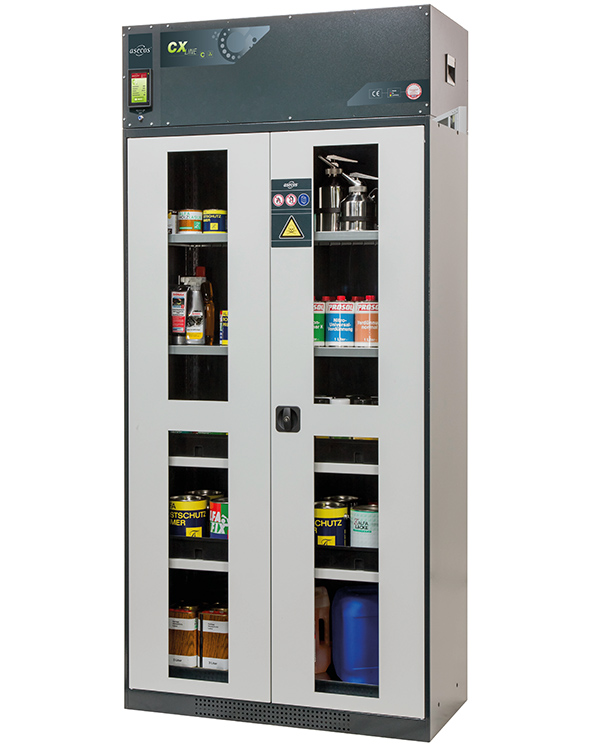

Recirculating air filter storage cabinet model CX.229.105.WDFW

Recirculating air filter storage cabinet CX-CLASSIC-G Model CX.229.105.WDFW

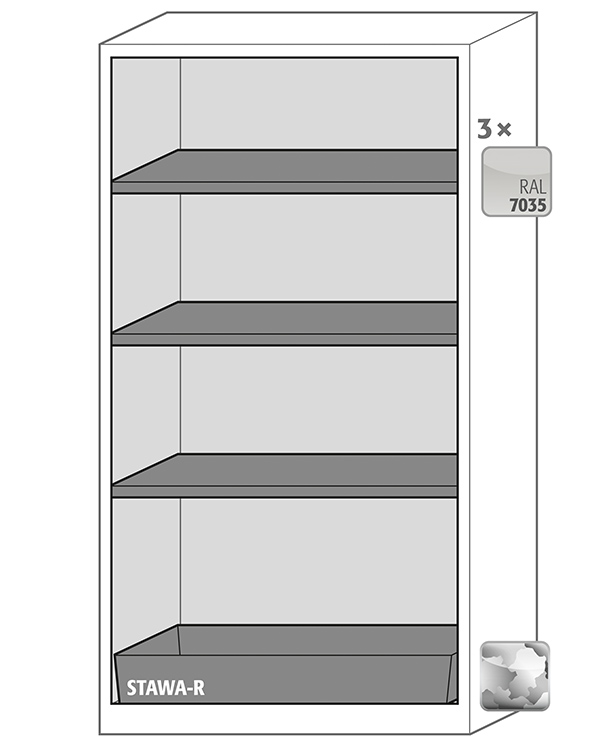

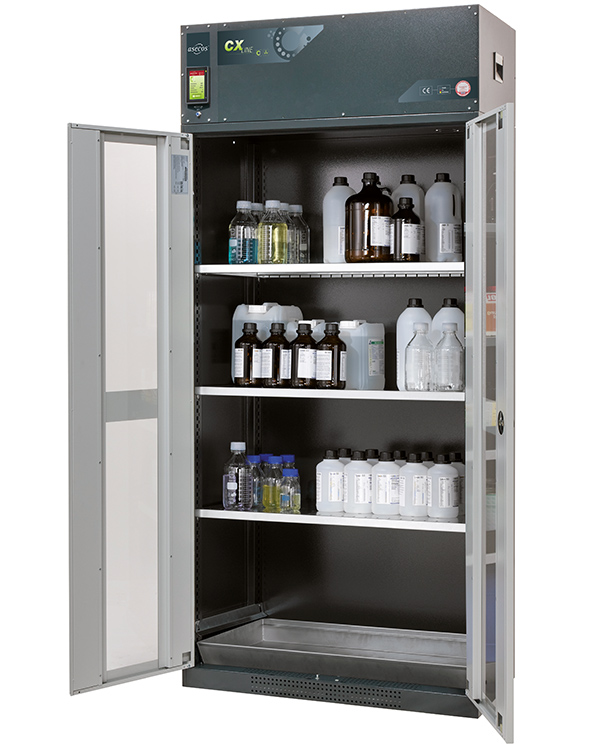

Body colour anthracite grey (RAL 7016), with glass-paneled wing doors in light grey (RAL 7035), interior equipment with 3 x shelf, 1 x bottom collecting sump (sheet steel galvanised)

Certification
  • DIN EN 16121/16122 conformity
  • CE compliant

Function / construction
  • Robust construction and longevity: robust, high-quality, scratch-resistant outer body with powder-coated textured surface
  • No unauthorised use: doors lockable with cylinder locking (integrated in the turning handle)
  • Easy alignment: adjusting aids to compensate for uneven floor

Recirculating air filter module
  • Ideal for the direct installation in working areas – very low noise, only approx. 39 dB (A)
  • With multi-stage wideband filter
  • Monitoring electronics for extraction incl. cool-device cable and power plug
  • Optical and acoustical alarm including potential-free alarm contact
  • Display with innovative touch panel
  • Manual check of the filter saturation
Order No. 32925-041-30511

Parcels or general cargo are usually delivered within one week of the delivery date. In the case of dispatch via a special forwarding agent (for safety storage cabinets and hazardous substance workstations), delivery is carried out regularly after all necessary delivery information (e.g. checklists) has been provided, on average within 10 working days after the provision date. The exact delivery period (provision time + delivery time) can be found in the detailed order confirmation or as a guide from your asecos contact person.

frei Haus

SCOPE OF SERVICES DELIVERY FREE DOMICILE (LFH):

  • Delivery including packaging material to behind the first locked door at ground level
  • on a one-way pallet (without overcoming steps, stairs, etc.)

frei Haus

SCOPE OF SERVICES DELIVERY FREE PLACE OF USE (LFV)
goes beyond this:

  • - Delivery will be notified by asecos
  • - highly recommended if you do not have your own trained staff available

The benefits for you:

  • the installation at the desired location in the building (installation must be possible in advance
    be clarified on the basis of a transport questionnaire to be completed by the customer)
  • the alignment of the cabinet
  • taking away the packaging material

Not included are:

  • - Use of crane or similar
  • - A transfer time longer than 30 minutes
... that our experts are always available to advise you?
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.

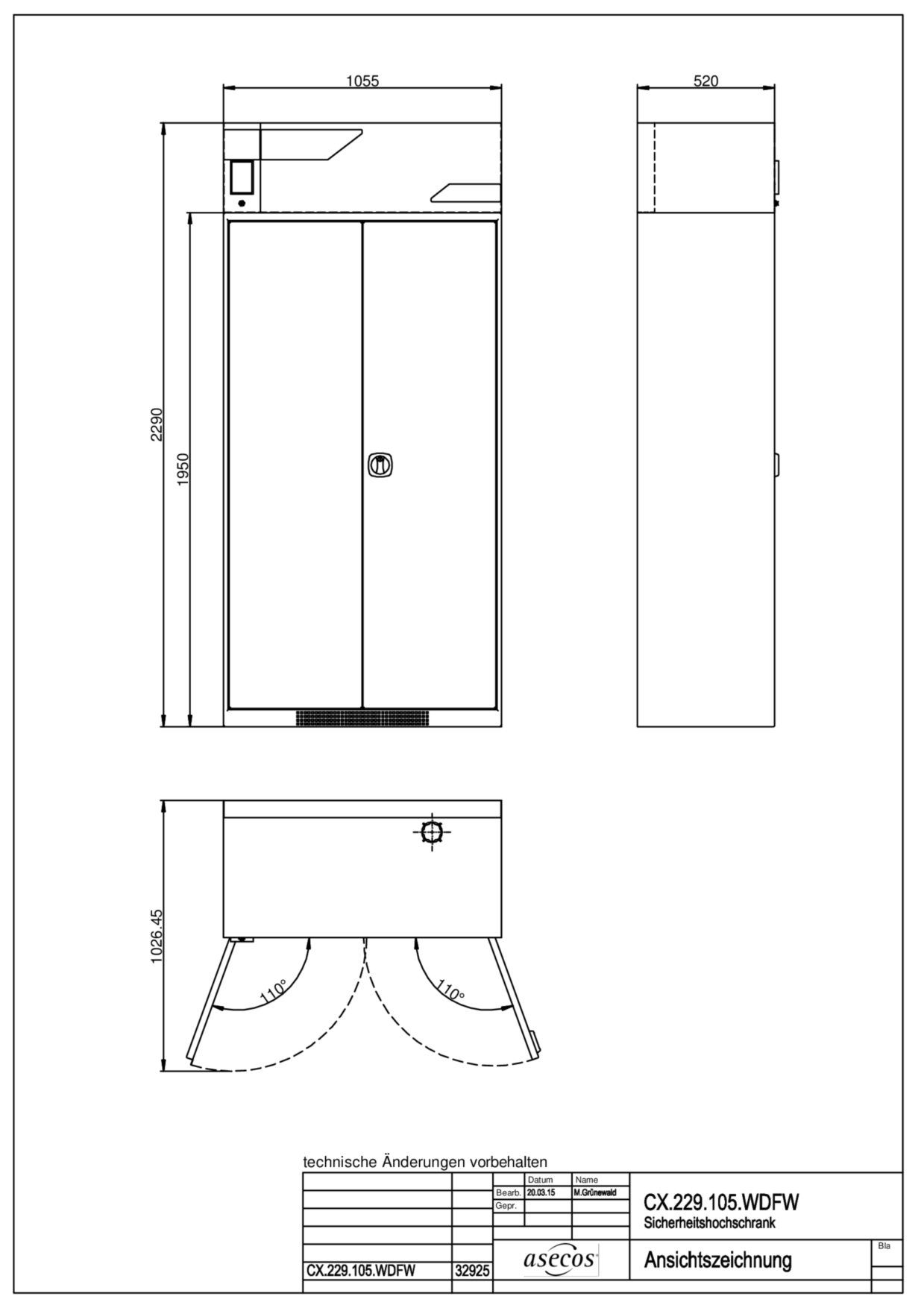

External dimensions W x D x H 1055 x 520 x 2290 mm
Internal dimensions W x D x H 996 x 493 x 1835 mm
Depth with open doors 1.026,00 mm
Net weight configuration 162,00 kg
Fire resistance level No fire resistance
CE compliant yes (1)
GS certified No (0)
According to standard EN 16121/16122
Automatic door closing system No (0)
Door open arrest system No (0)
Door opening angle 110 °
Nominal Power Consumption 120 W
Power consumption in standby mode 50 W
Maximum current consumption 0,5 A
Nominal voltage 230 V
Frequency 50 Hz
Number of storage levels 3 piece
Max. load of shelves 100.00 kg
Capacity of bottom collecting sump 33.00 litres
ecl@ss 14.0 40-06-01-03
UNSPSC code 24112402
Customs tariff number 94032080
GTIN 4054923108875
Coupled doors (one-handed operation) No (0)
