Gas cylinder cabinet type tested in accordance with EN 14470-2 model G30.205.060

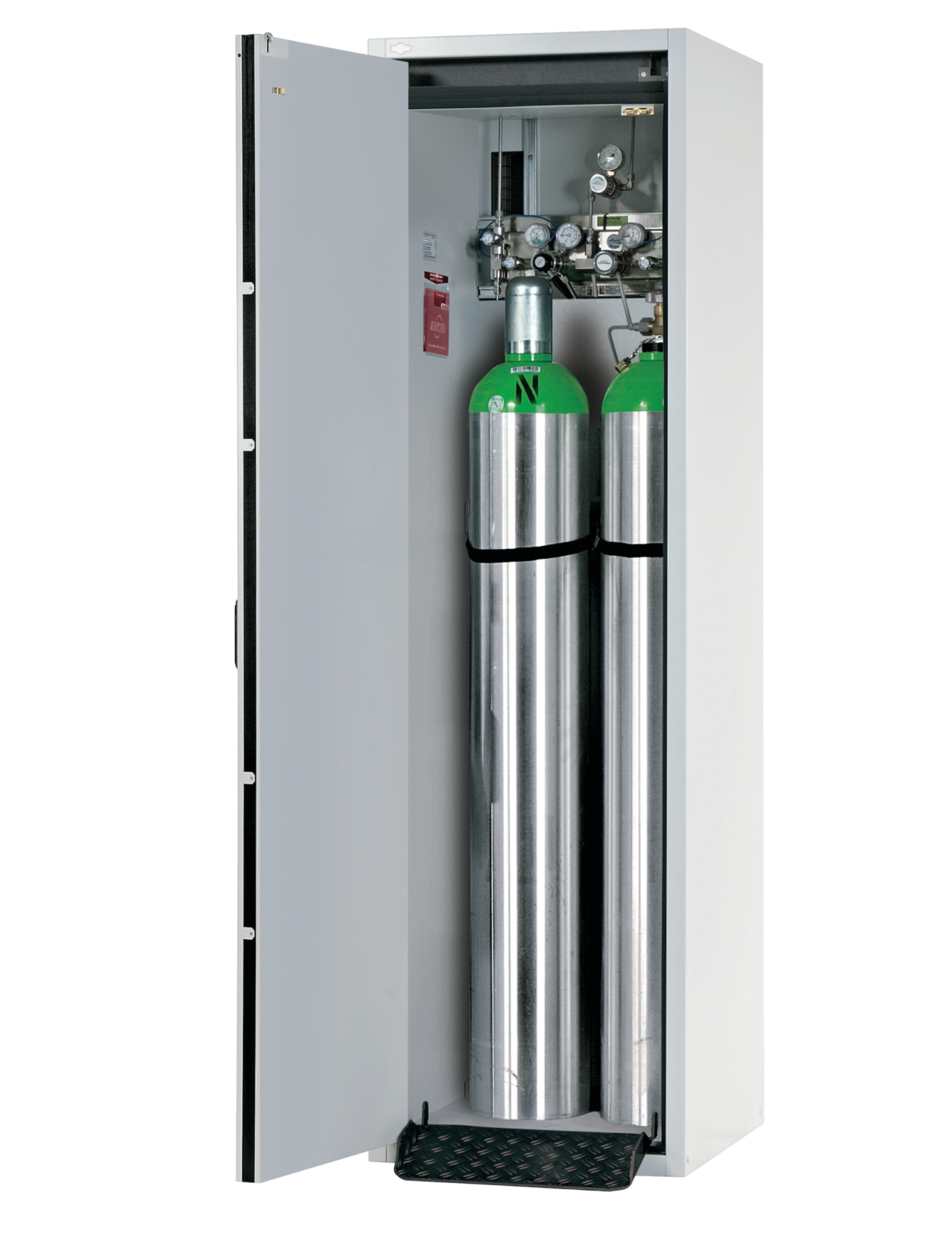

Gas cylinder cabinet G-CLASSIC-30 Model G30.205.060

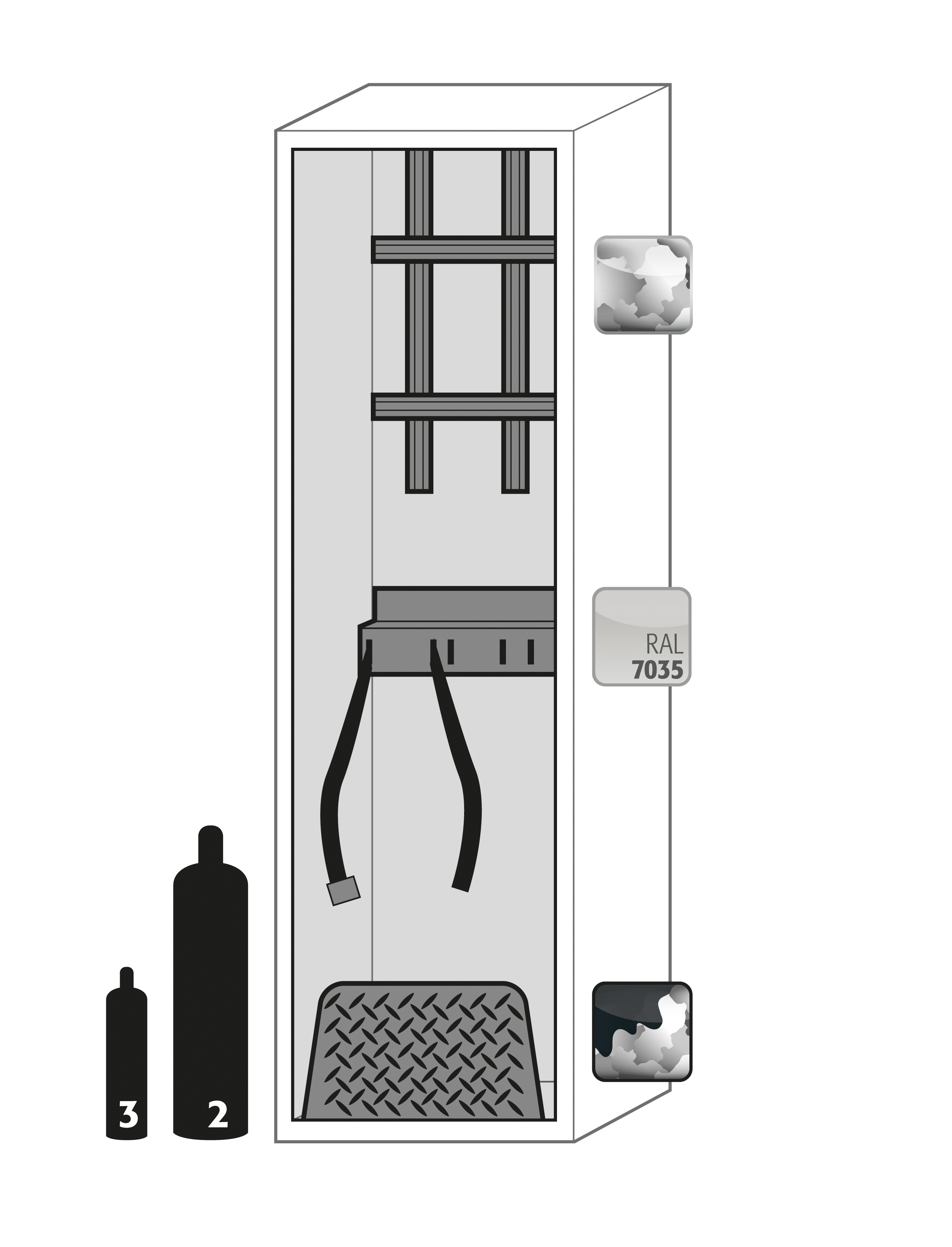

light grey (RAL 7035), interior equipment with 1 x standard interior equipment gas cylinders (sheet steel galvanised and powder-coated)

Certification
  • Fire resistance 30 minutes
  • type tested in accordance with EN 14470-2
  • DIN EN 16121/16122 conformity
  • CE compliant

Function / construction
  • Robust construction and longevity: body made of powder-coated sheet steel
  • No unauthorised use: door lockable with profile cylinder (integration in an existing locking system possible)
  • Easy alignment: adjusting aids to compensate for uneven floor
  • Easy mounting of connecting pipes and gas fittings: large interior height (1890 mm), many lead-through possibilities on the top of the cabinet
  • Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust, even ventilation inside the cabinet
Order No. 30685-001-30687
Recommended retail price
NOTE:
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the asecos experts will be happy to help you further.

PRICE INFORMATION:
All prices are net prices and are subject to VAT.

¹ Ex works: The item price does not include delivery and delivery costs.
² Carriage paid: The item price includes free delivery to behind the first locked door.

In the event that material and auxiliary materials, freight, toll, customs and energy costs, wages, etc. increase unforeseeably during the term of the contract, we reserve the right to increase or recalculate the price accordingly.

When separate or additional orders of accessories and cabinet interiors (eg. shelves, perforated metal plate, etc.) are placed the purchase price is ex works plus packaging, freight costs and VAT (In consideration of the size and weight we will choose the best shipping method for you).
Direct enquiry Data sheet
... that our experts are always available to advise you?
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.

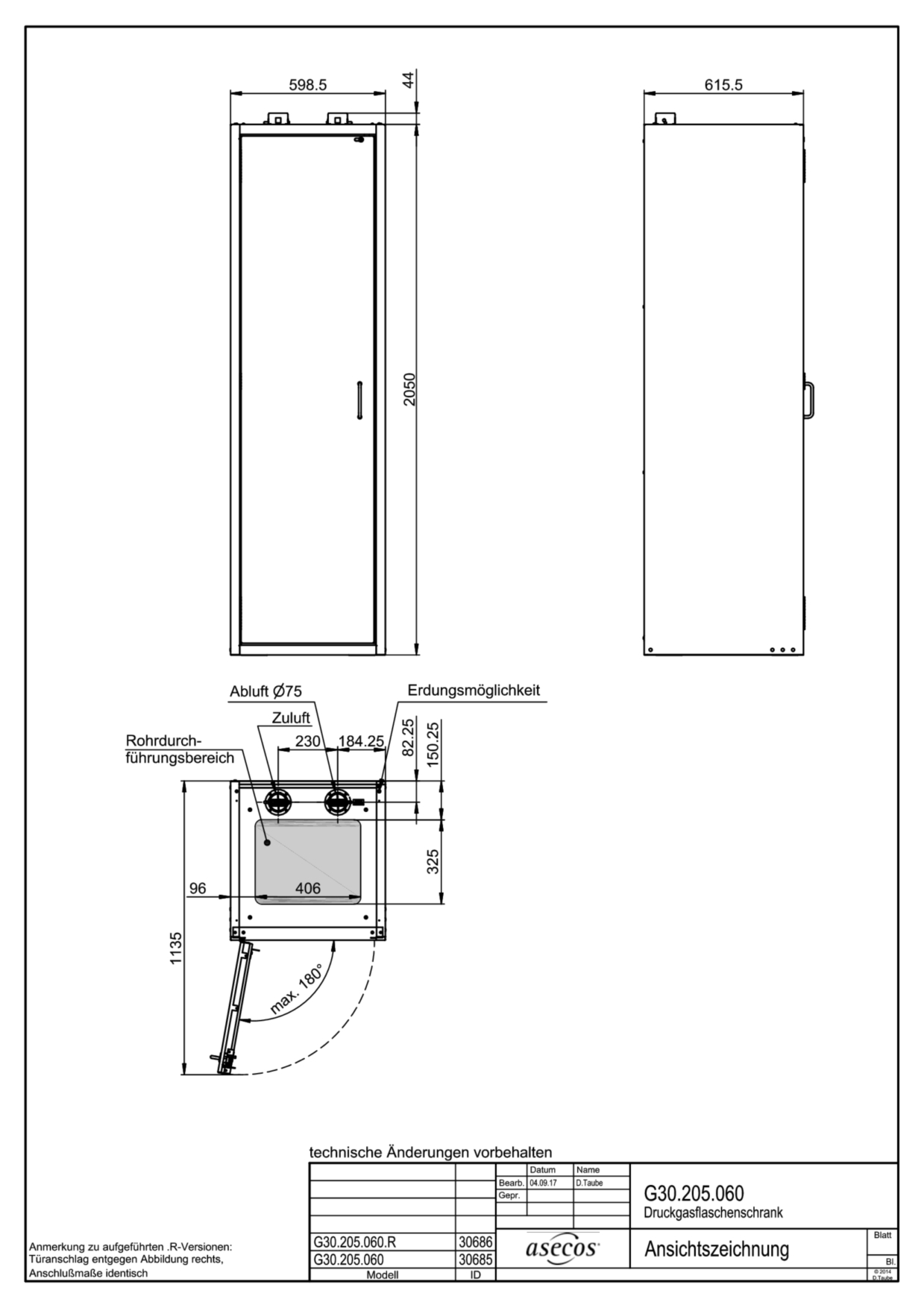

External dimensions W x D x H 598 x 616 x 2050 mm
Internal dimensions W x D x H 494 x 479 x 1874 mm
Depth with open doors 1,136.00 mm
Net weight configuration 293.50 kg
Fire resistance level 30 minutes
CE compliant yes (1)
GS certified No (0)
According to standard EN 14470-2
According to standard EN 16121/16122
Automatic door closing system No (0)
Door open arrest system No (0)
Door opening angle 180 °
Extraction air 75 DN
Differential pressure (10 times air change EK5/AK4) 5 Pa
Minimum exhaust air quantity 10 times 4 m³/h
Minimum exhaust air quantity 120 times 53 m³/h
Number of storage levels 1 piece
x 50-litre gas cylinders 2 piece
ecl@ss 14.0 40-06-01-11
UNSPSC code 24112402
Customs tariff number 94032080
GTIN 4054923056572
