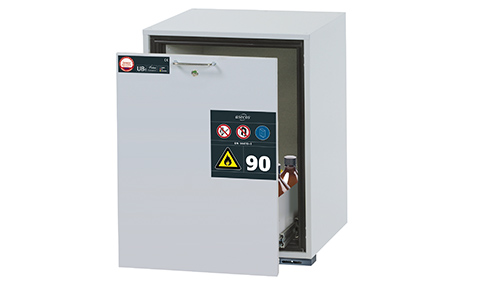

safety storage under bench cabinet type tested in accordance with EN 14470-1 model UB90.080.059.060.S
(castors with plinth are available on request)

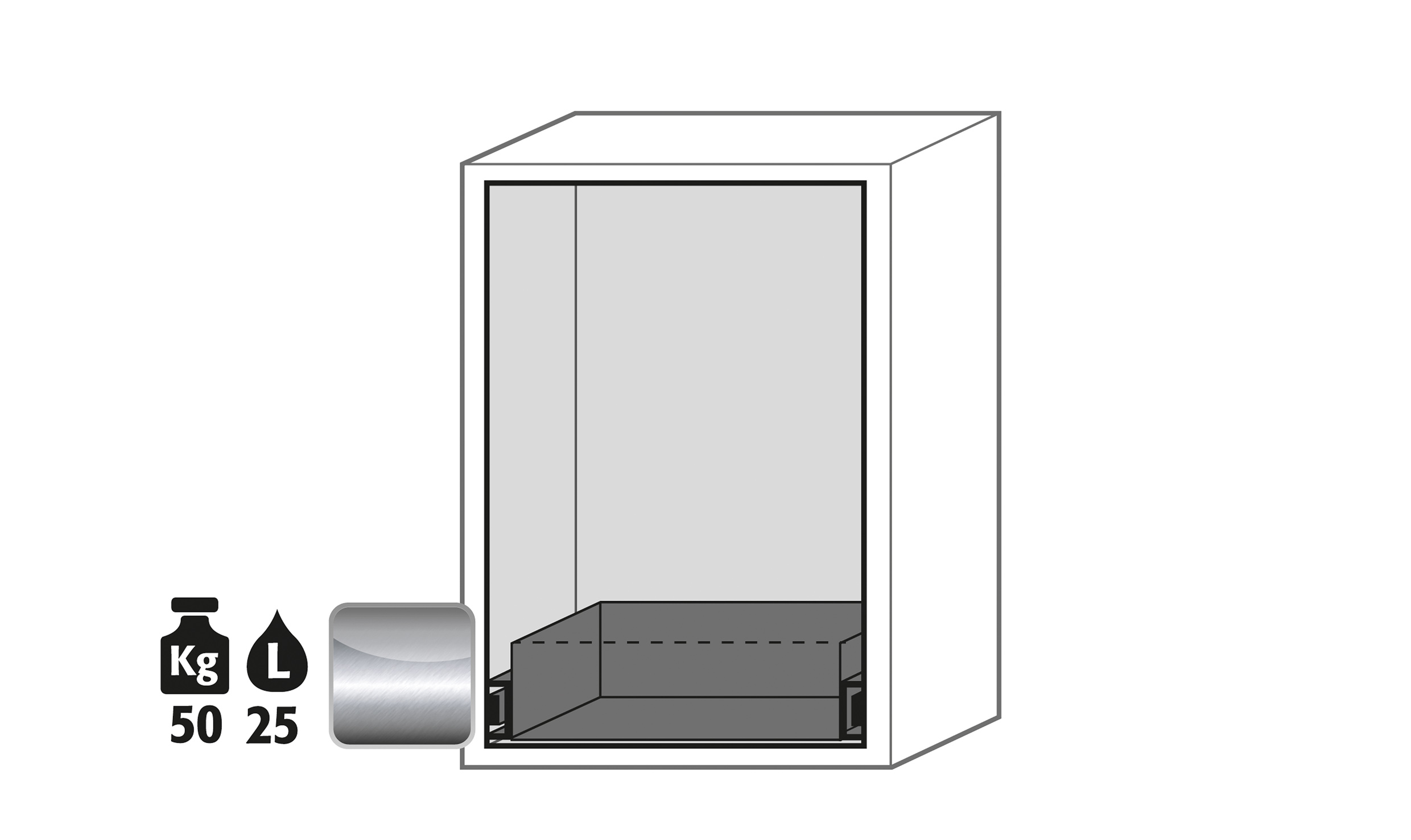

light grey (RAL 7035), interior equipment with 1 x drawer (sheet steel powder-coated)
Certification
- Fire resistance 90 minutes
- type tested in accordance with EN 14470-1
- DIN EN 16121/16122 conformity
- GS certified
- CE compliant
Function / construction
- Robust construction and longevity: body made of powder-coated sheet steel

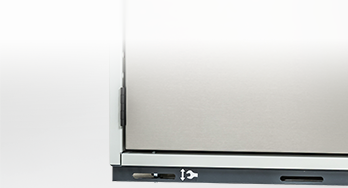

- Mobile: castors with plinth (optionally available), easy moving of the cabinet

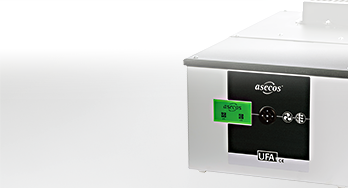

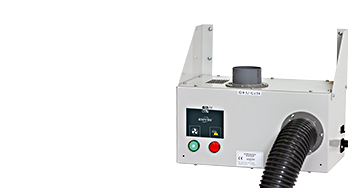

- Ventilation: integrated air ducts ready for connection (DN 50) to a technical exhaust system
Your selected product
Order No.
32658-001-35376
Recommended retail price
£2,082.00 - carriage paid*
£2,148.00 - free delivery *
* Information on Delivery and Price
sheet steel | drawer
stainless steel | drawer, perforated insert
sheet steel | drawer, perforated insert, second level drawer
All prices are net prices and are subject to VAT. All prices apply to mainland Britain only; the islands are excluded (prices available on request).
All prices are subject to a surcharge for remote areas.
Ex works
The item price does not include delivery and delivery costs.
Carriage paid:
The item price includes free delivery to behind the first locked door.
Free delivery:
The item price includes delivery free point of use and thus installation at the desired place of use in the building.
You can find more details here:
PRICE AND DELIVERY INFORMATION
Did you know ...
... that our experts are always available to advise you?Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
... that you can find everything you need to know about storing hazardous materials in a compact brochure? Further information is available at www.asecos.com.
Technical Data

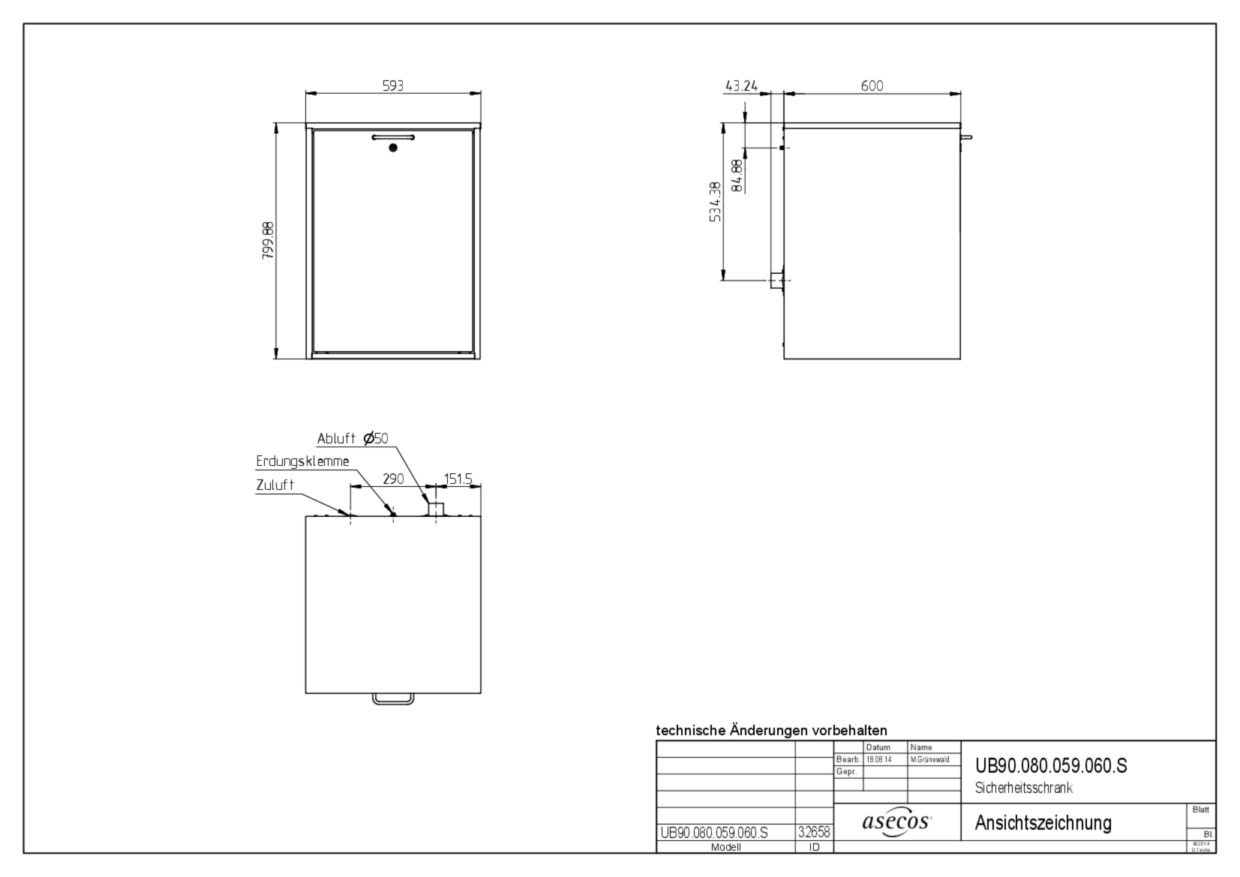

| External dimensions W x D x H | 593 x 600 x 800 mm |
| Internal dimensions W x D x H | 470 x 482 x 702 mm |
| Extraction air connection | 50 DN |
| Number of storage levels | 1 piece |
| CE compliant | Yes |
| Differential pressure (10 times air change EK5/AK4) | 1 Pa |
| ecl@ss 14.0 | 40-06-01-04 |
| Fire resistance level | 90 minutes |

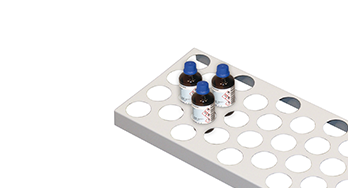

| Total storage capacity of 1 L laboratory glass bottles | 16 piece |
| Total storage capacity of 1 L laboratory PE bottles | 16 piece |
| Total storage capacity of 2.5 L laboratory glass bottles | 4 piece |
| Depth with open doors | 990.00 mm |
| GTIN | 4054923104396 |
| GS certified | Yes |
| Minimum exhaust air quantity 10 times | 2 m³/h |
| Net weight configuration | 141.00 kg |
| According to standard | EN 14470-1 |
| According to standard | EN 16121/16122 |
| Automatic door closing system | No |
| Door open arrest system | No |
| UNSPSC code | 24112402 |
| Customs tariff number | 94032080 |
| Weight | 149 kg |
| Material of storage levels | sheet steel |
