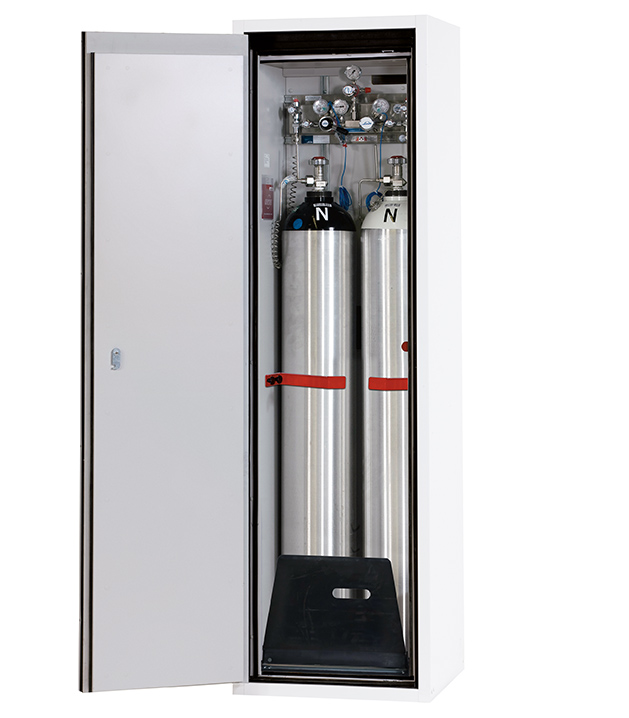

Gas cylinder cabinet type tested in accordance with EN 14470-2 model G90.205.060.2F
laboratory white (sim. RAL 9016), interior equipment with 1 x standard interior equipment gas cylinders (sheet steel galvanised and powder-coated)
Certification
- Fire resistance 90 minutes
- type tested in accordance with EN 14470-2
- DIN EN 16121/16122 conformity
- GS certified
- CE compliant
Function / construction
- Control at a glance: optional high-quality F90 glass window allowing quick view of the level and pressure of the gas cylinders
- No unauthorised use: door lockable with profile cylinder (integration in an existing locking system possible)
- Easy alignment: adjusting aids to compensate for uneven floor
- Easy mounting of connecting pipes and gas fittings: large interior height (1890 mm), many lead-through possibilities on the top of the cabinet
- Tested and certified: according to the stricter GS principles
Your selected product
Order No.
30678-005-30682
Recommended retail price
£4,305.00 - carriage paid*
£4,385.00 - free delivery *
* Information on Delivery and Price
sheet steel | standard interior equipment gas cylinders
sheet steel | standard interior equipment gas cylinders
sheet steel | standard interior equipment gas cylinders
sheet steel | standard interior equipment gas cylinders
All prices are net prices and are subject to VAT. All prices apply to mainland Britain only; the islands are excluded (prices available on request).
All prices are subject to a surcharge for remote areas.
Ex works
The item price does not include delivery and delivery costs.
Carriage paid:
The item price includes free delivery to behind the first locked door.
Free delivery:
The item price includes delivery free point of use and thus installation at the desired place of use in the building.
You can find more details here:
PRICE AND DELIVERY INFORMATION
Did you know ...
... that our experts are always available to advise you?Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
... that you can find everything you need to know about storing hazardous materials in a compact brochure? Further information is available at www.asecos.com.
Technical Data
| External dimensions W x D x H | 598 x 615 x 2050 mm |
| Internal dimensions W x D x H | 477 x 425 x 1858 mm |
| Extraction air connection | 75 DN |
| Number of storage levels | 1 piece |
| CE compliant | Yes |
| Differential pressure (10 times air change EK5/AK4) | 5 Pa |
| Differential pressure (120 times air change EK5/AK4) | 76 Pa |
| 50-liter compressed gas cylinders | 2 piece |
| ecl@ss 14.0 | 40-06-01-11 |
| Fire resistance level | 90 minutes |
| Depth with open doors | 1,135.00 mm |
| GTIN | 4054923075245 |
| GS certified | Yes |
| Minimum exhaust air quantity 10 times | 4 m³/h |
| Minimum exhaust air quantity 120 times | 45 m³/h |
| Net weight configuration | 354.50 kg |
| According to standard | EN 14470-2 |
| According to standard | EN 16121/16122 |
| Automatic door closing system | No |
| Door open arrest system | No |
| Door opening angle | 180 ° |
| UNSPSC code | 24112402 |
| Customs tariff number | 94032080 |
| Weight | 367 kg |
| Material of storage levels | sheet steel |
