Safety storage cabinet for lithium-ion batteries
body colour anthracite grey (RAL 7016), with wing doors in gentian blue (RAL 5010)
Interior equipment with
- 2 x socket strip UK version

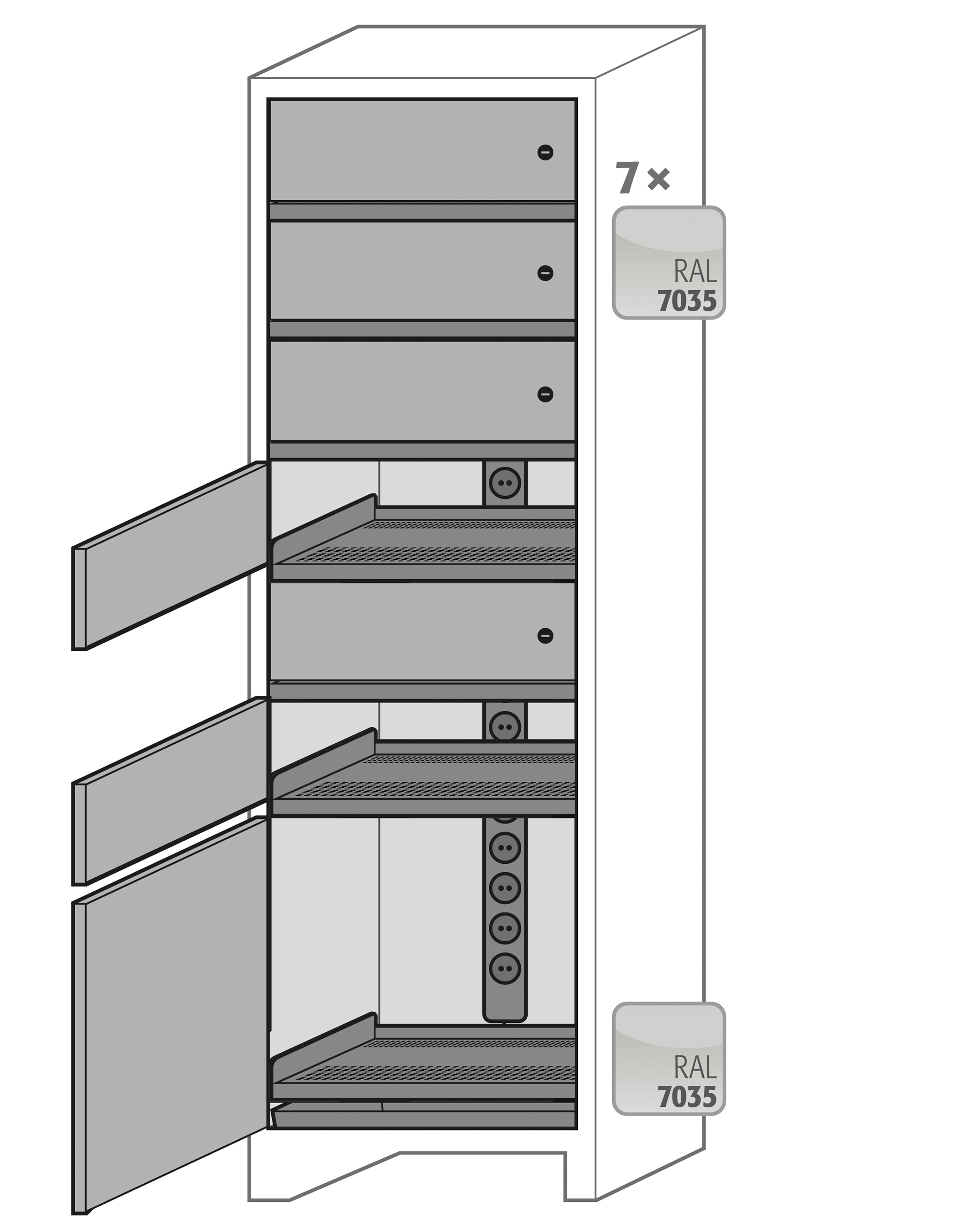

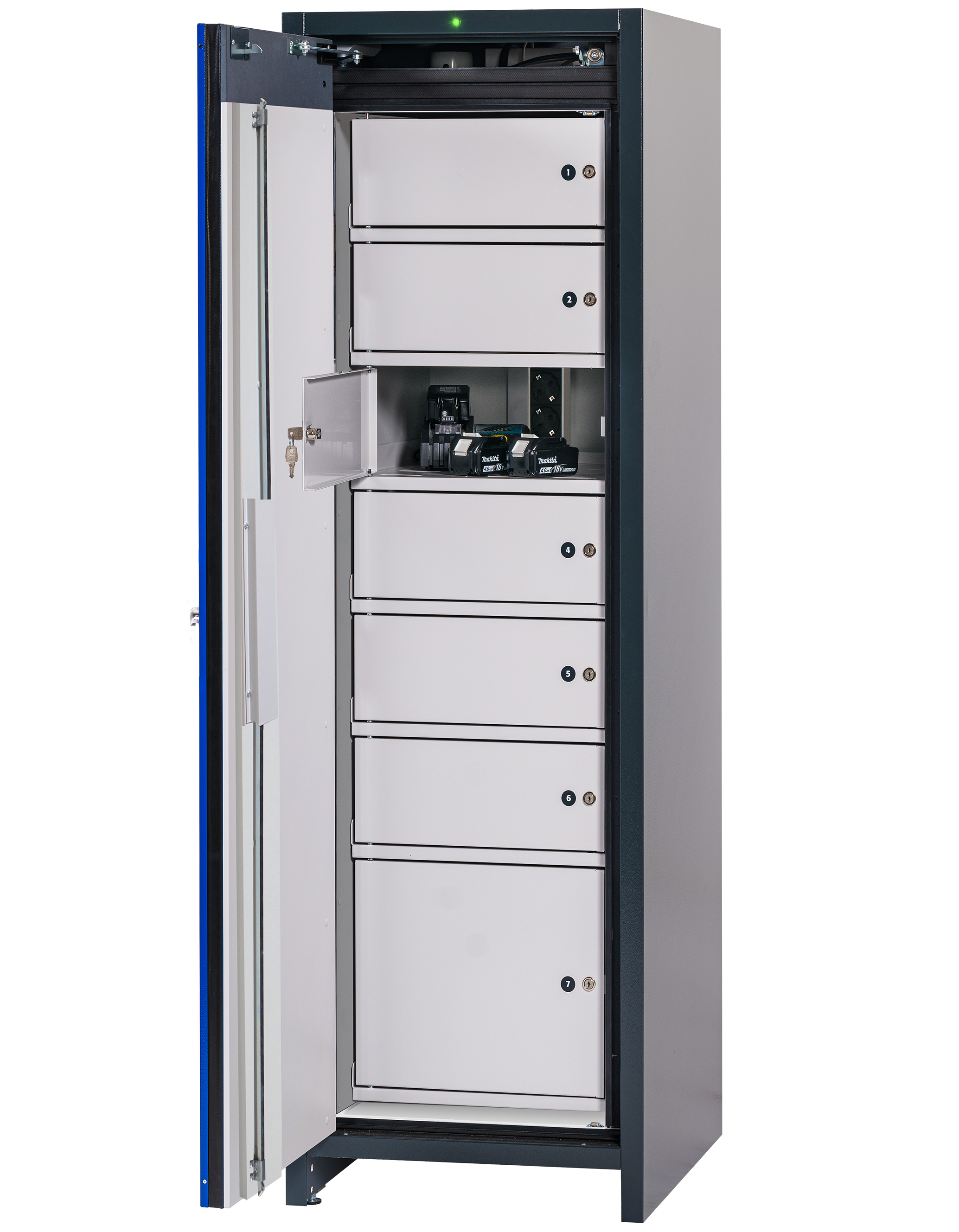

- 1 x locker system the metal locker system includes 7 metal lockers (6x h=approx.170mm, 1x h=approx.360mm) and a bottom collecting sump. Each locker has access to a minimum of 1 power socket and comes with its own pair of keys. In addition, a master key is provided upon delivery. For ease of use, a set of stickers and 2 sets of numbered key tags are enclosed.
- DIN EN 14470-1 : Fire resistance of 90 minutes (type 90) from outside to inside
- DIN EN 1363-1 : Fire resistance of 90 minutes from inside to outside
- CE compliant
- The insulated shelf – Propagation tested for safety at every storage level. In the event of a battery fire, spread to other batteries is prevented.
- Smoke detector detects even incipient fires and can transmit alarms to the building control system quickly.
- If your work area is not staffed, the standard potential-free switching contacts forward differentiated alarms immediately to a connected control centre. Optional remote signalling module available.
- Profile cylinder lock with locking state indicator
Your selected product
Order No.
42896-047-41375
Recommended retail price
£5,709.00 - free delivery *
* Information on Delivery and Price
sheet steel | 2 socket strips uK, 4 insulated shelves, bottom collecting sump
sheet steel | 2 socket strips uK, locker system with 7 separate units and bottom collecting sump
All prices are net prices and are subject to VAT. All prices apply to mainland Britain only; the islands are excluded (prices available on request).
All prices are subject to a surcharge for remote areas.
Ex works
The item price does not include delivery and delivery costs.
Carriage paid:
The item price includes free delivery to behind the first locked door.
Free delivery:
The item price includes delivery free point of use and thus installation at the desired place of use in the building.
You can find more details here:
PRICE AND DELIVERY INFORMATION
Did you know ...
... that our experts are always available to advise you?Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
… why lithium-ion batteries can cause fires?You can find all the causes and how to reduce the risk in our ION-LINE brochure.
Technical Data
| External dimensions W x D x H | 599 x 615 x 1953 mm |
| Internal dimensions W x D x H | 450 x 503 x 1647 mm |
| Extraction air connection | 75 DN |
| Fuse (1-phase) | 13 A |
| Fuse (2-phase) | 2 x 13 A |
| Coupled doors (one-handed operation) | No |
| Number of storage levels | 7 piece |
| Number of socket strips | 2 piece |
| Number of socket outlets per strip | 8 piece |
| CE compliant | Yes |
| Differential pressure (10 times air change EK5/AK4) | 5 Pa |
| ecl@ss 14.0 | 40-06-01-90 |
| Entry width transport base | 526 mm |
| Entry height transport base | 90 mm |
| Fire resistance level | 90 minutes |
| Frequency | 50/60 Hz |
| Depth with open doors | 1,128.00 mm |
| GTIN | 4054923268678 |
| GS certified | No |
| Power max. (1-phase) | 2,99 kW |
| Power max. (2-phase) | 5,98 kW |
| Nominal Power Consumption | 3 W |
| Maximum current consumption | 16 A |
| Nominal voltage | 230/400 V |
| Net weight configuration | 338.00 kg |
| According to standard | EN 14470-1 |
| Automatic door closing system | No |
| Door open arrest system | No |
| Door opening angle | 89.4 ° |
| UNSPSC code | 24112402 |
| Capacity of bottom collecting sump | 1.00 litres |
| Customs tariff number | 94032080 |
| Weight | 360 kg |
| Material of storage levels | sheet steel |
