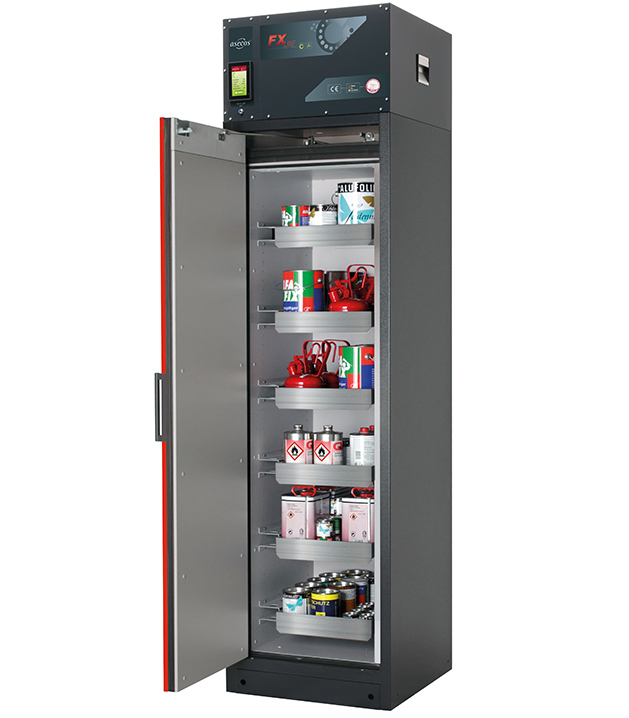

Recirculating air filter storage cabinet type tested in accordance with EN 14470-1 model FX90.229.060.WDAC
Body colour anthracite grey (RAL 7016), with wing door in traffic red (RAL 3020), interior equipment with 6 x drawer (stainless steel 1.4301)
Certification
- Fire resistance 90 minutes
- type tested in accordance with EN 14470-1
- DIN EN 16121/16122 conformity
- GS certified
- CE compliant
Function / construction
- Robust construction and longevity: triple hinged door, safety elements assembled outside the storage compartment for increased protection against corrosion, scratch- and impact-resistant surface, easy to clean
- User-friendly and safe: door open arrest system (standard), convenient and safe removal or storage of containers
- Always closed: serial automatic door closing (TSA) releases arrested door after approx. 60 seconds; acoustic and visual signal before closing
- No unauthorised use: door lockable with cylinder locking (integration in an existing locking system possible) and locking state indicator (red/green)
- Easy transport: integrated transport base with removable, optional base cover
- Easy alignment: adjusting aids to compensate for uneven floor
Recirculating air filter module
- Ideal for the direct installation in working areas – very low noise, only approx. 39 dB (A)
- With multi-stage wideband filter
- Monitoring electronics for extraction and filtration incl. cool-device cable and power plug
- Optical and acoustical alarm including potential-free alarm contact
- Display with innovative touch panel
- ATEX compliant: C` II 3/-G Ex ic nA IIB T4 Gc
Order No.
32915-046-33618
Parcels or general cargo are usually delivered within one week of the delivery date. In the case of dispatch via a special forwarding agent (for safety storage cabinets and hazardous substance workstations), delivery is carried out regularly after all necessary delivery information (e.g. checklists) has been provided, on average within 10 working days after the provision date. The exact delivery period (provision time + delivery time) can be found in the detailed order confirmation or as a guide from your asecos contact person.
SCOPE OF SERVICES DELIVERY FREE DOMICILE (LFH):
- Delivery including packaging material to behind the first locked door at ground level
- on a one-way pallet (without overcoming steps, stairs, etc.)
SCOPE OF SERVICES DELIVERY FREE PLACE OF USE (LFV)
goes beyond this:
- - Delivery will be notified by asecos
- - highly recommended if you do not have your own trained staff available
The benefits for you:
- the installation at the desired location in the building (installation must be possible in advance
be clarified on the basis of a transport questionnaire to be completed by the customer) - the alignment of the cabinet
- taking away the packaging material
Not included are:
- - Use of crane or similar
- - A transfer time longer than 30 minutes
... that our experts are always available to advise you?
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
| External dimensions W x D x H | 599 x 615 x 2294 mm |
| Internal dimensions W x D x H | 450 x 522 x 1647 mm |
| Depth with open doors | 1,128.00 mm |
| Entry width transport base | 526 mm |
| Entry height transport base | 90 mm |
| Net weight configuration | 361.00 kg |
| Fire resistance level | 90 minutes |
| CE compliant | yes (1) |
| GS certified | yes (1) |
| According to standard | EN 14470-1 |
| According to standard | EN 16121/16122 |
| Automatic door closing system | yes (1) |
| Door open arrest system | yes (1) |
| Door opening angle | 89.5 ° |
| Nominal Power Consumption | 120 W |
| Power consumption in standby mode | 50 W |
| Maximum current consumption | 0.5 A |
| Nominal voltage | 230 V |
| Frequency | 50 Hz |
| Number of storage levels | 6 piece |
| Max. load of drawers | 25 kg |
| Volume of pull-outs | 4.50 litres |
| Total storage capacity of 1 L laboratory glass bottles | 72 piece |
| Total storage capacity of 1 L laboratory PE bottles | 72 piece |
| Total storage capacity of 2.5 L laboratory glass bottles | 6 piece |
| ecl@ss 14.0 | 40-06-01-09 |
| UNSPSC code | 24112402 |
| Customs tariff number | 94032080 |
| GTIN | 4054923148888 |
