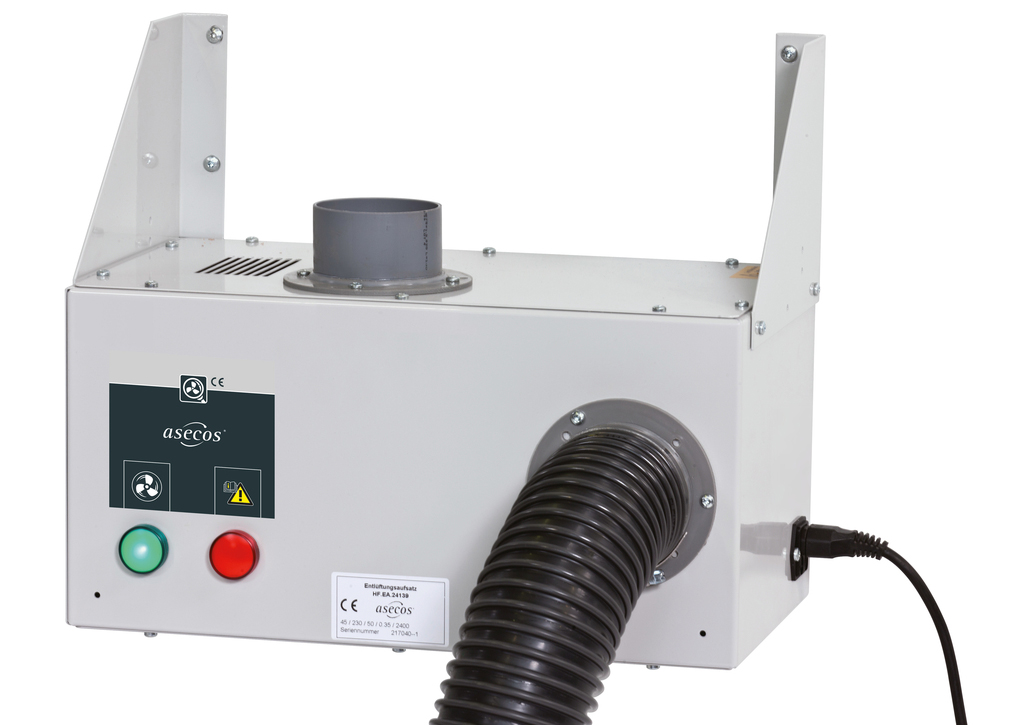

Extraction unit model
- extraction unit HF.EA.11442.
- for tall cabinets
- for installation on the cabinet
- powder-coated sheet steel
- with exhaust air monitoring
- CE compliant
- explosion-proof, ATEX label: CE EX II 3/- G Ex ic nA IIC T4 G
- installation in explosion zone: outside any EX-zone
- extraction from explosion zone: EX-zone 2
- W x D x H (mm): 200 x 400 x 200
Order No.
14220
Recommended retail price
991,00 € - ex works¹
NOTE:
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the asecos experts will be happy to help you further.
PRICE INFORMATION:
All prices are net prices and are subject to VAT.
¹ Ex works: The item price does not include delivery and delivery costs.
In the event that material and auxiliary materials, freight, toll, customs and energy costs, wages, etc. increase unforeseeably during the term of the contract, we reserve the right to increase or recalculate the price accordingly.
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the asecos experts will be happy to help you further.
PRICE INFORMATION:
All prices are net prices and are subject to VAT.
¹ Ex works: The item price does not include delivery and delivery costs.
In the event that material and auxiliary materials, freight, toll, customs and energy costs, wages, etc. increase unforeseeably during the term of the contract, we reserve the right to increase or recalculate the price accordingly.
... that our experts are always available to advise you?
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
| External dimensions W x D x H | 200 x 400 x 200 mm |
| Weight | 10,1 kg |
| Differential pressure | 200-20 Pa |
| Power consumption in operation | 45 W |
| Nominal voltage | 230 V |
| Speed | 2 400 rpm |
| Emission sound pressure level | 35 dB |
| Maximum current consumption | 0,35 A |
| Frequency | 50 Hz |
| Potential-free alarm contact | No (0) |
| ATEX label | II 3/- G Ex ic nA IIC T4 G |
| explosion-proof | Yes |
| Exhaust air monitoring | Yes (1) |
| ecl@ss 11.0 | 22-41-90-90 |
| Customs tariff number | 84145100 |
| GTIN | 4250101134838 |
