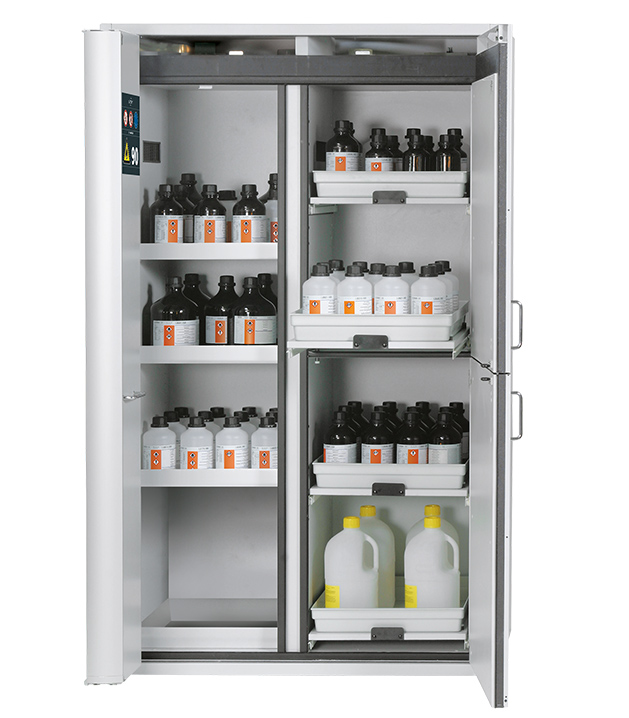

combi safety storage cabinet type tested in accordance with EN 14470-1 model K90.196.120.MF.FWAC

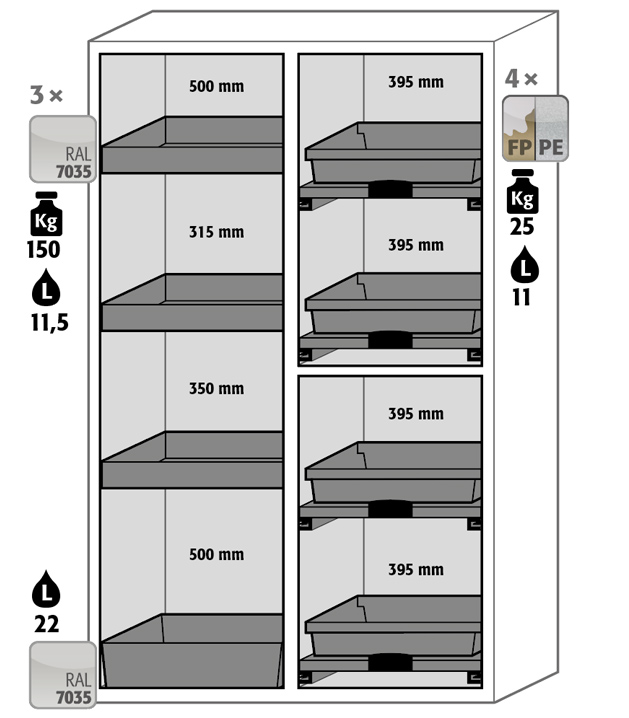

light grey (RAL 7035), interior equipment with 3 x tray shelf, 1 x bottom collecting sump (sheet steel powder-coated), 4 x pull-out shelf (panel/PP melamine resin-coated)
Certification
- Fire resistance 90 minutes
- type tested in accordance with EN 14470-1
- DIN EN 16121/16122 conformity
- GS certified
- CE compliant
Function / construction
- Robust construction and longevity: triple hinged door, body made of powder-coated sheet steel, safety elements assembled outside the cabinet for increased protection against corrosion
- Two in one: 2 compartments (vertical seperated) allow the storage of flammable liquids and aggressive chemicals in one cabinet
- No unauthorised use: doors lockable with profile cylinder (integration in an existing locking system possible) / cylinder lock
- Easy alignment: adjusting aids to compensate for uneven floor
- Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust system
Order No.
30334-001-34257
Recommended retail price
4 809,00 € - carriage paid²
NOTE:
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the asecos experts will be happy to help you further.
PRICE INFORMATION:
All prices are net prices and are subject to VAT.
All prices are only valid for Portuguese mainland, excluding islands (price on application).
All prices are subject to a surcharge for freight zone 2.
² Carriage paid: The item price includes free delivery to behind the first locked door.
FREIGHT ZONES:
Zone 1: Lisbon, Porto and (postal codes) 1000 - 2199 / 2500 - 2999 / 3700 - 3899 / 4000 - 4599 / 4700 - 4799
Zone 2: Rest of Portugal without islands
In the event that material and auxiliary materials, freight, toll, customs and energy costs, wages, etc. increase unforeseeably during the term of the contract, we reserve the right to increase or recalculate the price accordingly.
When separate or additional orders of accessories and cabinet interiors (eg. shelves, perforated metal plate, etc.) are placed the purchase price is ex works plus packaging, freight costs and VAT (In consideration of the size and weight we will choose the best shipping method for you).
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the asecos experts will be happy to help you further.
PRICE INFORMATION:
All prices are net prices and are subject to VAT.
All prices are only valid for Portuguese mainland, excluding islands (price on application).
All prices are subject to a surcharge for freight zone 2.
² Carriage paid: The item price includes free delivery to behind the first locked door.
FREIGHT ZONES:
Zone 1: Lisbon, Porto and (postal codes) 1000 - 2199 / 2500 - 2999 / 3700 - 3899 / 4000 - 4599 / 4700 - 4799
Zone 2: Rest of Portugal without islands
In the event that material and auxiliary materials, freight, toll, customs and energy costs, wages, etc. increase unforeseeably during the term of the contract, we reserve the right to increase or recalculate the price accordingly.
When separate or additional orders of accessories and cabinet interiors (eg. shelves, perforated metal plate, etc.) are placed the purchase price is ex works plus packaging, freight costs and VAT (In consideration of the size and weight we will choose the best shipping method for you).
... that our experts are always available to advise you?
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
| External dimensions W x D x H | 1197 x 617 x 1969 mm |
| Internal dimensions W x D x H |
left: 450 x 524 x 1742 top right: 491 x 542 x 862 bottom right: 491 x 542 x 862 mm |
| Depth with open doors | 1 178,00 mm |
| Net weight configuration | 520,00 kg |
| Fire resistance level | 90 minutes |
| CE compliant | yes (1) |
| GS certified | yes (1) |
| According to standard | EN 14470-1 |
| According to standard | EN 16121/16122 |
| Automatic door closing system | yes (1) |
| Door open arrest system | yes (1) |
| Door opening angle | 89 ° |
| Extraction air connection | 75 DN |
| Differential pressure (10 times air change EK5/AK4) | 5 Pa |
| Differential pressure (30 times air change) | 28 Pa |
| Minimum exhaust air quantity 10 times | 9 m³/h |
| Recom. exhaust air quantity 30 times | 29 m³/h |
| Number of storage levels | 7 piece |
| Max. load of drawers | 25 kg |
| Max. load of shelves | 150.00 kg |
| Volume of pull-outs | 11.00 litres |
| Capacity of bottom collecting sump | 22.00 litres |
| Total storage capacity of 1 L laboratory glass bottles | 128 piece |
| Total storage capacity of 1 L laboratory PE bottles | 128 piece |
| Total storage capacity of 2.5 L laboratory glass bottles | 44 piece |
| ecl@ss 14.0 | 40-06-01-02 |
| UNSPSC code | 24112402 |
| Customs tariff number | 94032080 |
| GTIN | 4054923175389 |
Accessories
Extraction unit
846,00 € - carriage paid²
SpillGuard leak detection system
132,50 € - carriage paid²
