cabinet for acids and alkalis model SL.196.120.MV

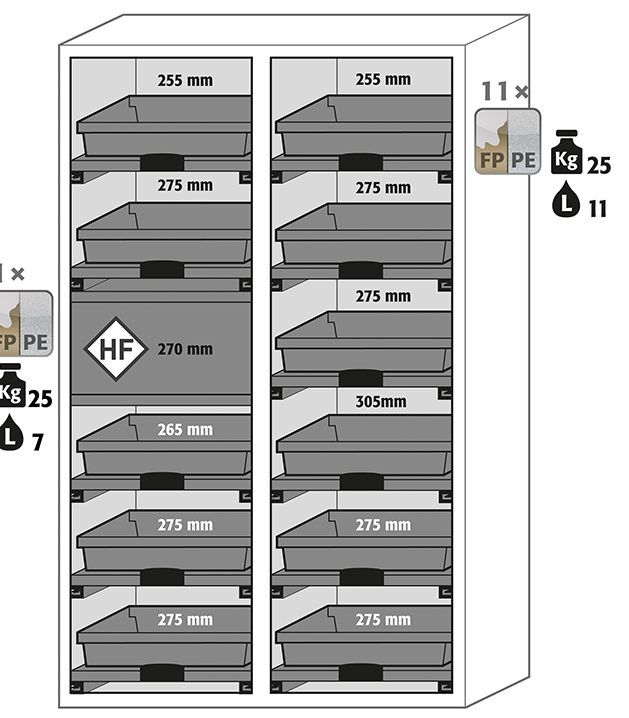

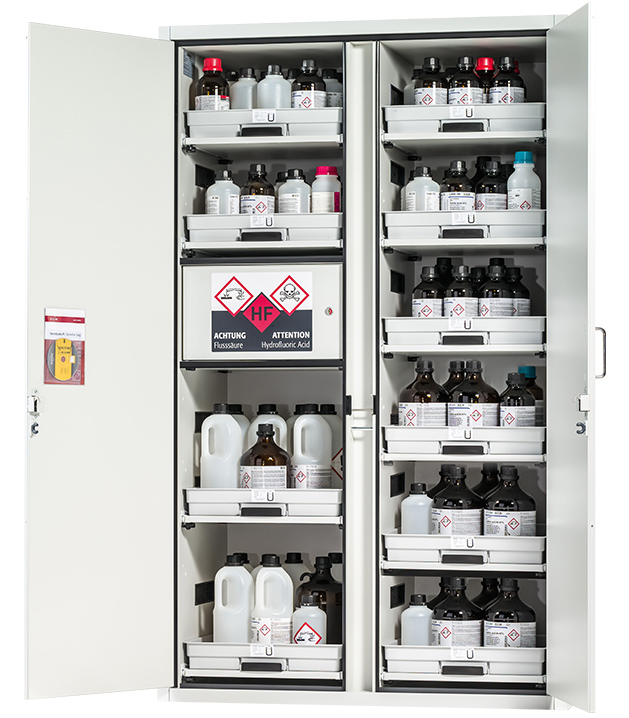

light grey (RAL 7035), interior equipment with 11 x pull-out shelf (panel/PP melamine resin-coated), 1 x storage box for hydrofluoric acid (panel / PE melamine resin-coated)
Certification
- DIN EN 16121/16122 conformity
- GS certified
Function / construction
- Robust construction and longevity: cabinet body made of powder-coated sheet steel, safety elements assembled outside the storage compartment for increased protection against corrosion
- Two in one: two hermetically separated storage compartments allow the isolated storage of acids and bases in one cabinet
- No unauthorised use: doors lockable with profile cylinder (integration in an existing locking system possible)
- Easy alignment: adjusting aids to compensate for uneven floor
- ventilation: integrated metal-free air ducts ready for connection to a technical exhaust system with only one extraction air inlet
Order No.
30606-001-37225
Parcels or general cargo are usually delivered within one week of the delivery date. In the case of dispatch via a special forwarding agent (for safety storage cabinets and hazardous substance workstations), delivery is carried out regularly after all necessary delivery information (e.g. checklists) has been provided, on average within 10 working days after the provision date. The exact delivery period (provision time + delivery time) can be found in the detailed order confirmation or as a guide from your asecos contact person.
SCOPE OF SERVICES DELIVERY FREE DOMICILE (LFH):
- Delivery including packaging material to behind the first locked door at ground level
- on a one-way pallet (without overcoming steps, stairs, etc.)
SCOPE OF SERVICES DELIVERY FREE PLACE OF USE (LFV)
goes beyond this:
- - Delivery will be notified by asecos
- - highly recommended if you do not have your own trained staff available
The benefits for you:
- the installation at the desired location in the building (installation must be possible in advance
be clarified on the basis of a transport questionnaire to be completed by the customer) - the alignment of the cabinet
- taking away the packaging material
Not included are:
- - Use of crane or similar
- - A transfer time longer than 30 minutes
... that our experts are always available to advise you?
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
| External dimensions W x D x H | 1200 x 605 x 1970 mm |
| Internal dimensions W x D x H | all compartments: 485 x 570 x 1869 mm |
| Depth with open doors | 1.153,00 mm |
| Net weight configuration | 279,70 kg |
| Fire resistance level | No fire resistance |
| CE compliant | No (0) |
| GS certified | yes (1) |
| According to standard | EN 16121/16122 |
| Automatic door closing system | No (0) |
| Door open arrest system | No (0) |
| Extraction air connection | 75 DN |
| Differential pressure (30 times air change) | 10 Pa |
| Recom. exhaust air quantity 30 times | 31 m³/h |
| Number of storage levels | 12 piece |
| Max. load of drawers | 25 kg |
| Max. load of storage box for hydrofluoric acid | 25 kg |
| Volume of pull-outs | 11.00 litres |
| Capacity of storage box for hydrofluoric acid | 7,00 litres |
| ecl@ss 14.0 | 40-06-01-07 |
| UNSPSC code | 24112402 |
| Customs tariff number | 94032080 |
| GTIN | 4054923233331 |
