Safety storage cabinet type tested in accordance with EN 14470-1 model S90.196.120

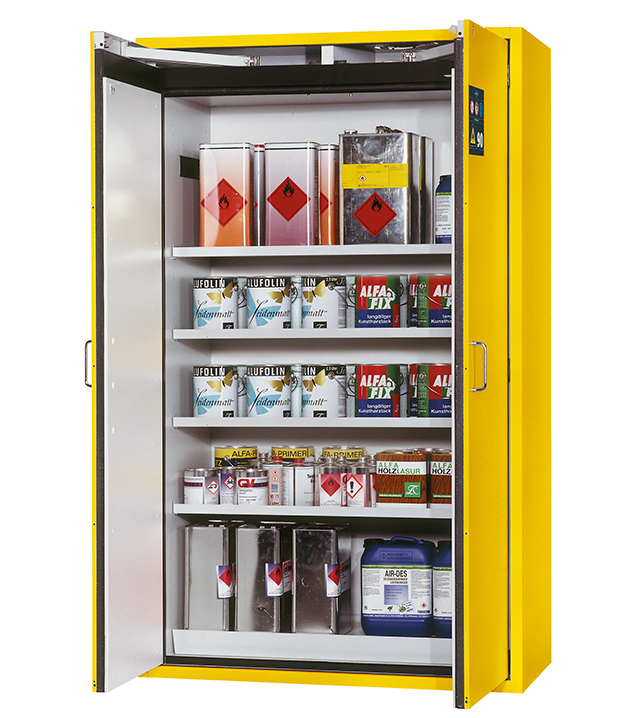

Safety storage cabinet S-CLASSIC-90 Model S90.196.120
warning yellow (RAL 1004), interior equipment with 4 x shelf, 1 x perforated insert, 1 x bottom collecting sump (sheet steel powder-coated)

Certification
  • Fire resistance 90 minutes
  • type tested in accordance with EN 14470-1
  • DIN EN 16121/16122 conformity
  • GS certified
  • CE compliant

Function / construction
  • Robust construction and longevity: triple hinged door, body made of powder-coated sheet steel, safety elements assembled outside the cabinet for increased protection against corrosion
  • No unauthorised use: doors lockable with profile cylinder (integration in an existing  locking system possible)
  • Easy alignment: adjusting aids to compensate for uneven floor
  • Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust system
Order No. 30115-002-30128
Recommended retail price

Parcels or general cargo are usually delivered within one week of the delivery date. In the case of dispatch via a special forwarding agent (for safety storage cabinets and hazardous substance workstations), delivery is carried out regularly after all necessary delivery information (e.g. checklists) has been provided, on average within 10 working days after the provision date. The exact delivery period (provision time + delivery time) can be found in the detailed order confirmation or as a guide from your asecos contact person.

frei Haus

SCOPE OF SERVICES DELIVERY FREE DOMICILE (LFH):

  • Delivery including packaging material to behind the first locked door at ground level
  • on a one-way pallet (without overcoming steps, stairs, etc.)

frei Haus

SCOPE OF SERVICES DELIVERY FREE PLACE OF USE (LFV)
goes beyond this:

  • - Delivery will be notified by asecos
  • - highly recommended if you do not have your own trained staff available

The benefits for you:

  • the installation at the desired location in the building (installation must be possible in advance
    be clarified on the basis of a transport questionnaire to be completed by the customer)
  • the alignment of the cabinet
  • taking away the packaging material

Not included are:

  • - Use of crane or similar
  • - A transfer time longer than 30 minutes
Direct enquiry Data sheet
...why is technical ventilation of safety storage cabinets so important? You can find all the information you need about explosion zones, occupational safety and legal requirements in our flip catalogue.
Are you familiar with all the security features of a safety storage cabinet type EN 14470-1? This video provides an overview.
... that our experts are always available to advise you?
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
External dimensions W x D x H 1196 x 616 x 1968 mm
Internal dimensions W x D x H 1050 x 524 x 1742 mm
Depth with open doors 1.173,00 mm
Net weight configuration 441,00 kg
Fire resistance level 90 minutes
CE compliant yes (1)
GS certified yes (1)
According to standard EN 14470-1
According to standard EN 16121/16122
Automatic door closing system No (0)
Door open arrest system No (0)
Door opening angle 89 °
extraction air connection 75 DN
Differential pressure (10 times air change EK5/AK4) 5 Pa
Minimum exhaust air quantity 10 times 10 m³/h
Number of storage levels 5 piece
Max. load of shelves 75.00 kg
Max. load of perforated insert 75.00 kg
Capacity of bottom collecting sump 33.00 litres
Total storage capacity of 1 L laboratory glass bottles 210 piece
Total storage capacity of 1 L laboratory PE bottles 210 piece
Total storage capacity of 2.5 L laboratory glass bottles 95 piece
ecl@ss 14.0 40-06-01-09
UNSPSC code 24112402
Customs tariff number 94032080
GTIN 4054923021105
Coupled doors (one-handed operation) No (0)
