Product comparison Item list

Safety storage cabinet type tested in accordance with EN 14470-1 model V90.196.045.VDAC:0012

Safe and approved storage of flammable hazardous substances in working areas

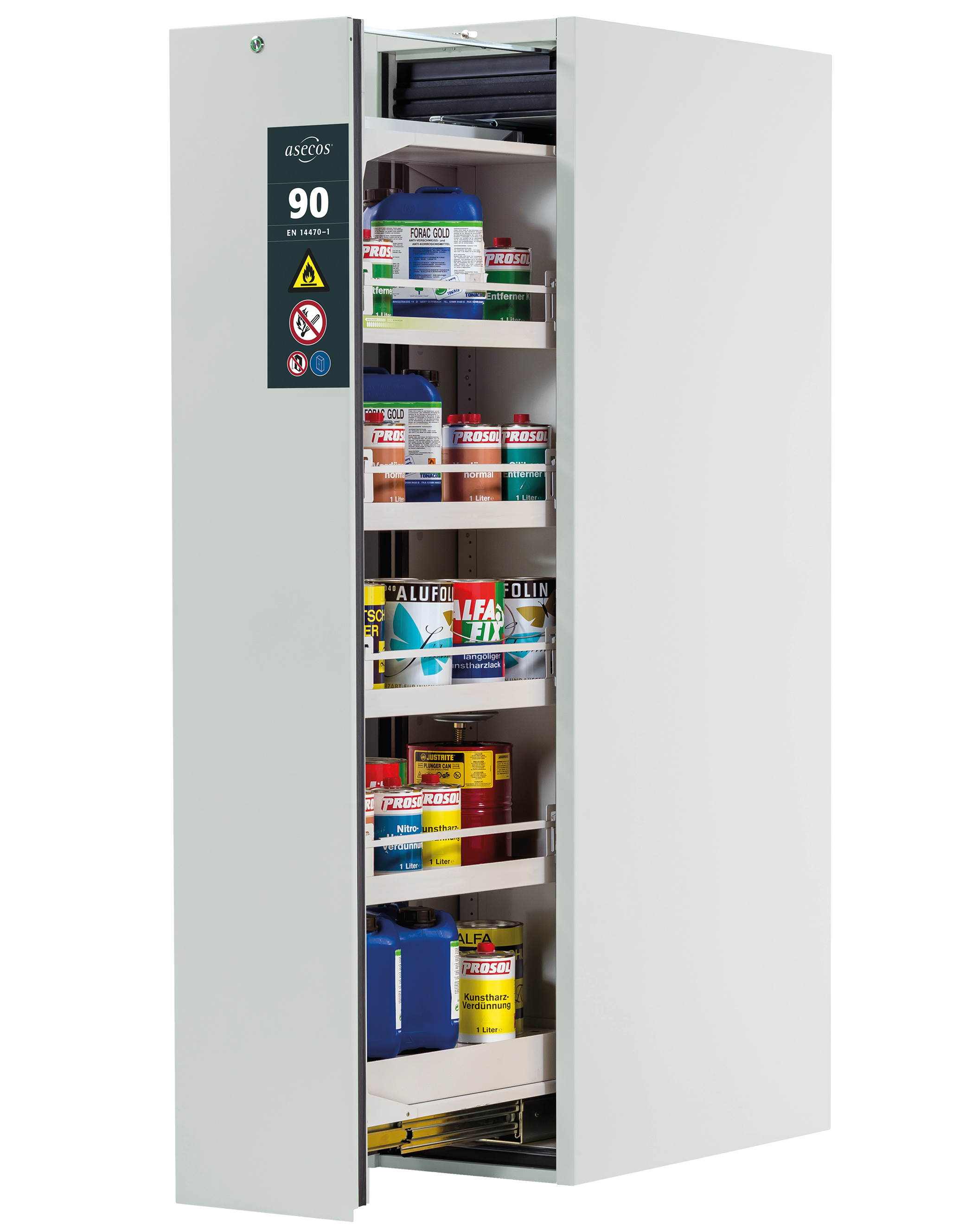

Safety storage cabinet V-MOVE-90 Model V90.196.045.VDAC:0012
light grey (RAL 7035)

Interior equipment with
  • 4 x tray shelf (sheet steel powder-coated)
  • 1 x bottom collecting sump (sheet steel powder-coated)
Certification
  • Fire resistance 90 minutes
  • Type tested in accordance with EN 14470-1
  • DIN EN 16121/16122 conformity
  • GS certified
  • CE compliant
Function / construction
  • Robust construction and longevity: robust, high-quality, scratch-resistant outer body with powder-coated surface
  • Electronic opening and closing: the vertical drawer opens and closes at the push of a button
  • Perfect access: the vertical drawer provides an overview and simple access to the stored containers
  • Always closed: serial automatic door closing (TSA) after approx. 60 seconds with acoustic and visual signal before drawer closing
  • No unauthorised use: vertical drawer lockable with cylinder locking (integration in an existing locking system possible) and locking state indicator (red/green)
  • Easy alignment: adjusting aids to compensate for uneven floor
  • Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust system
Order No. 35034-001-36111
Recommended retail price
NOTE:
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the asecos experts will be happy to help you further.

PRICE INFORMATION:
All prices are net prices and are subject to VAT.
All prices are only valid for mainland Spain, excluding islands (price on application).

² Carriage paid: The item price includes free delivery to behind the first locked door.

In the event that material and auxiliary materials, freight, toll, customs and energy costs, wages, etc. increase unforeseeably during the term of the contract, we reserve the right to increase or recalculate the price accordingly.

When separate or additional orders of accessories and cabinet interiors (eg. shelves, perforated metal plate, etc.) are placed the purchase price is ex works plus packaging, freight costs and VAT (In consideration of the size and weight we will choose the best shipping method for you).
Direct enquiry Data sheet
... that our experts are always available to advise you?
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.
External dimensions W x D x H 449 x 860 x 1966 mm
Internal dimensions W x D x H 331 x 775 x 1750 mm
Net weight configuration 366,00 kg
Fire resistance level 90 minutes
FM 6050 approved No
CE compliant yes (1)
GS certified yes (1)
According to standard EN 14470-1
According to standard EN 16121/16122
UL 1275 listed no
Automatic door closing system yes (1)
Door open arrest system No (0)
Extraction air connection 75 DN
Differential pressure (10 times air change EK5/AK4) 5 Pa
Minimum exhaust air quantity 10 times 5 m³/h
Nominal Power Consumption 50 W
Maximum current consumption 0,5 A
Nominal voltage 85-265 V
Frequency 50/60 Hz
Number of storage levels 4 piece
Max. load of drawers 140 kg
Max. load of shelves 50.00 kg
Volume of pull-outs 125.00 litres
Capacity of bottom collecting sump 12.50 litres
Total storage capacity of 1 L laboratory glass bottles 105 piece
Total storage capacity of 1 L laboratory PE bottles 105 piece
Total storage capacity of 2.5 L laboratory glass bottles 40 piece
ecl@ss 14.0 40-06-01-01
UNSPSC code 24112402
Customs tariff number 94032080
GTIN 4054923201309
