Product Configurator

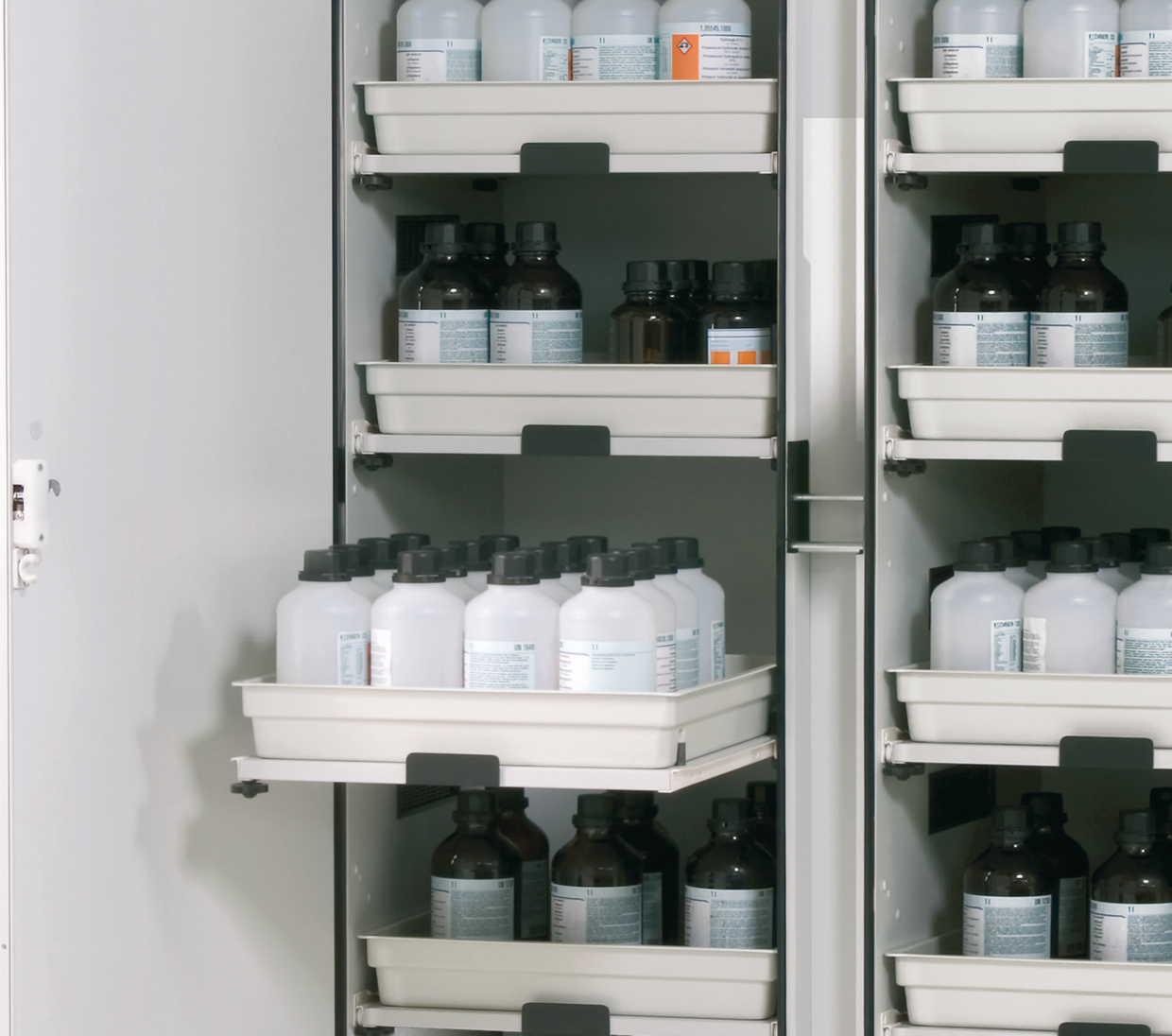

Pull-out shelf AbZ
Order No.:
30770
Configuration
- pull-out shelf AbZ
- panel/PP melamine resin-coated grey
- for model(s): SL
- for under bench cabinets body wide 590, 1100 and 1400 mm
- Capacity: 11.00 litres
- Load capacity: 25.00 kg

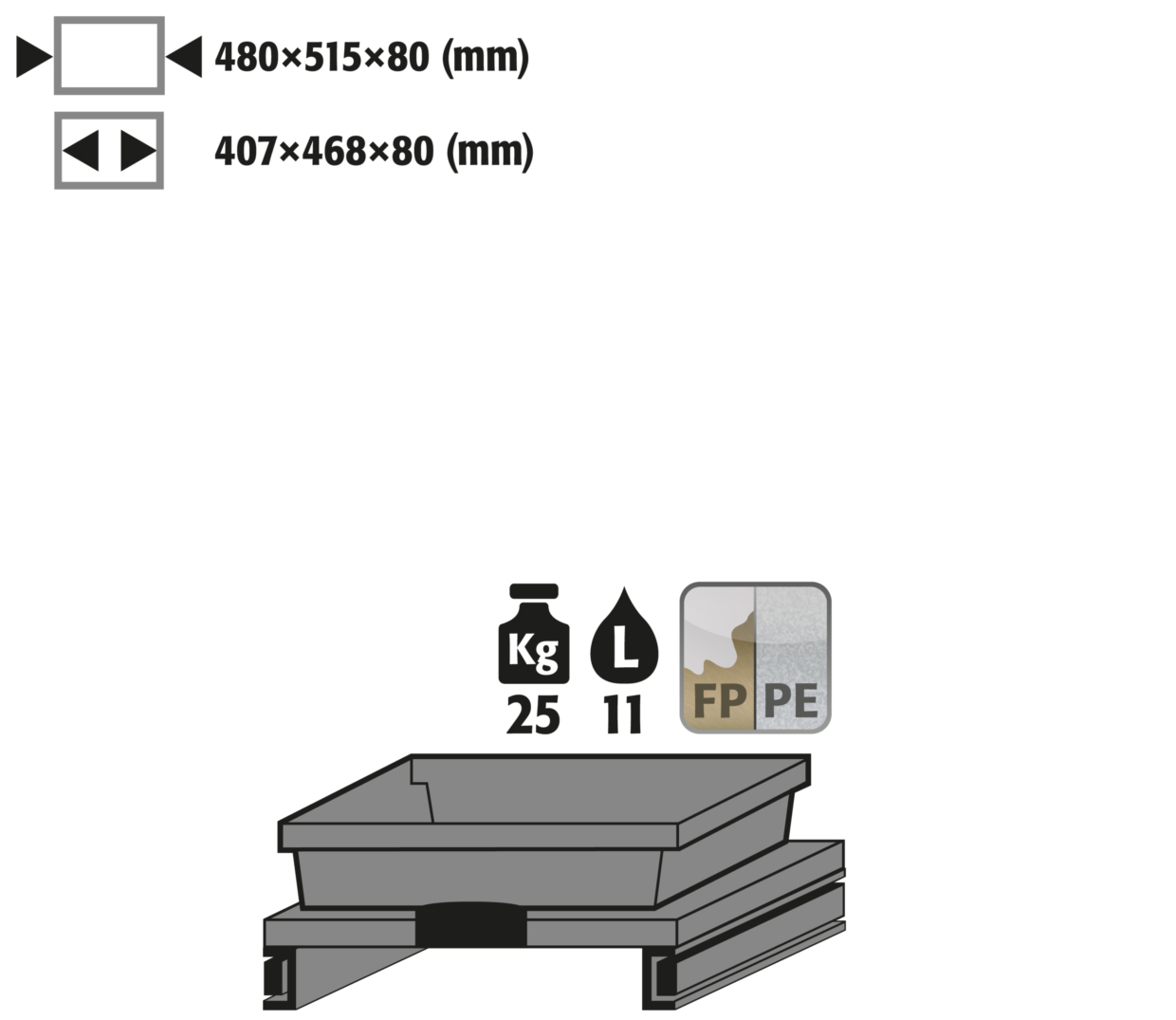

- Dimensions exterior: W x D x H (mm) 480 x 515 x 80
- Dimensions interior: W x D x H (mm) 407 x 468 x 80
- with plastic sump
Technical Data
| Width (external) | 480 mm |
| Height (external) | 80 mm |
| Depth (external) | 515 mm |
| Width (internal) | 407 mm |
| Depth (internal) | 468 mm |
| Height (internal) | 80 mm |
| Weight | 5 kg |
| Load capacity | 25 kg |
| Capacity | 11 litres |
| Maximum container volume | 10 litres |
| ecl@ss 11.0 | 21-10-10-11 |
| ecl@ss 10.0 | 21-10-04-59 |
| ecl@ss 8.1 | 21-10-04-90 |
| ecl@ss 9.1 | 21-10-04-90 |
| ecl@ss 5.1.4 | 21-10-04-90 |
| Country of origin | DEUTSCHLAND |
| Region of origin | HESSEN |
| GTIN | 4250101140006 |
| Customs tariff number | 94039910 |
