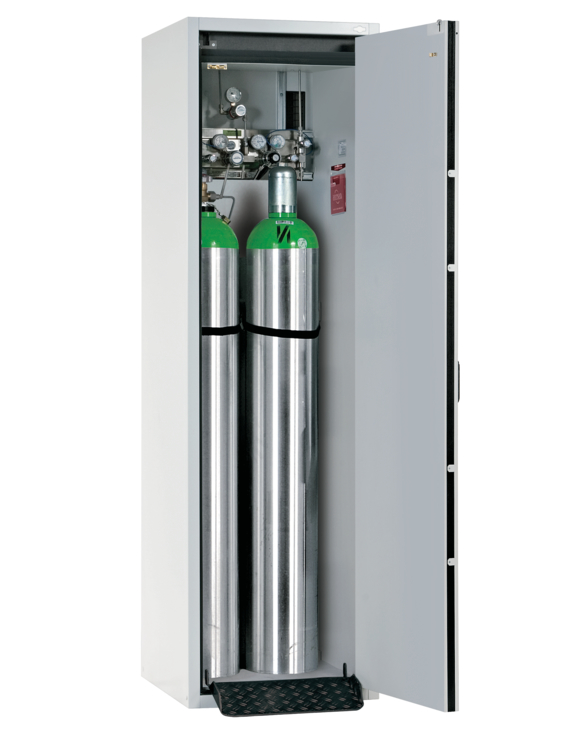

Gas cylinder cabinet type tested in accordance with EN 14470-2 model G30.205.060.R

Gas cylinder cabinet G-CLASSIC-30 Model G30.205.060.R

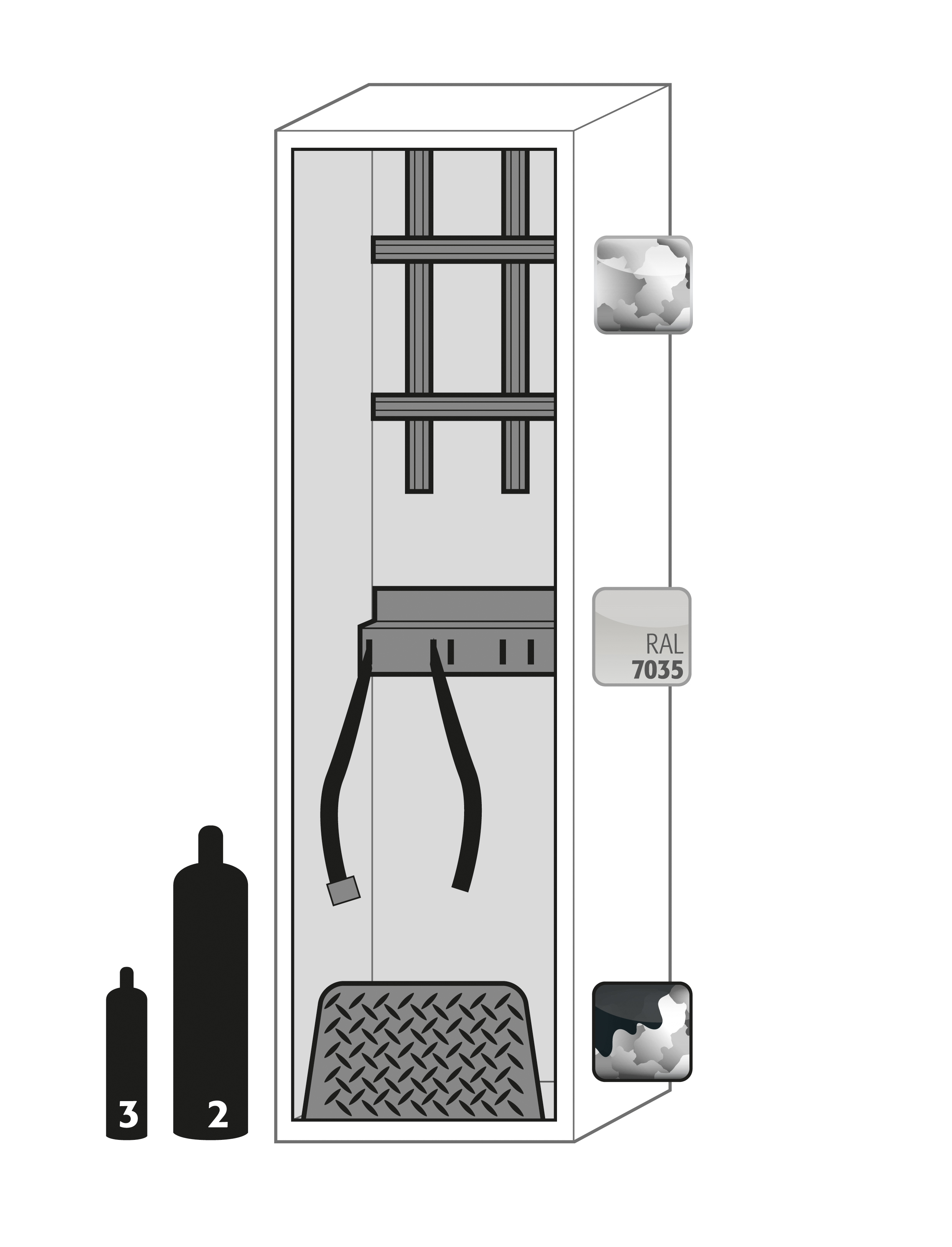

light grey (RAL 7035), interior equipment with 1 x standard interior equipment gas cylinders (sheet steel galvanised and powder-coated)

Certification
  • Fire resistance 30 minutes
  • type tested in accordance with EN 14470-2
  • DIN EN 16121/16122 conformity
  • GS certified
  • CE compliant

Function / construction
  • Robust construction and longevity: body made of powder-coated sheet steel
  • No unauthorised use: door lockable with profile cylinder (integration in an existing locking system possible)
  • Easy alignment: adjusting aids to compensate for uneven floor
  • Easy mounting of connecting pipes and gas fittings: large interior height (1890 mm), many lead-through possibilities on the top of the cabinet
  • Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust, even ventilation inside the cabinet
Order No. 30686-001-30687

Parcels or general cargo are usually delivered within one week of the delivery date. In the case of dispatch via a special forwarding agent (for safety storage cabinets and hazardous substance workstations), delivery is carried out regularly after all necessary delivery information (e.g. checklists) has been provided, on average within 10 working days after the provision date. The exact delivery period (provision time + delivery time) can be found in the detailed order confirmation or as a guide from your asecos contact person.

frei Haus

SCOPE OF SERVICES DELIVERY FREE DOMICILE (LFH):

  • Delivery including packaging material to behind the first locked door at ground level
  • on a one-way pallet (without overcoming steps, stairs, etc.)

frei Haus

SCOPE OF SERVICES DELIVERY FREE PLACE OF USE (LFV)
goes beyond this:

  • - Delivery will be notified by asecos
  • - highly recommended if you do not have your own trained staff available

The benefits for you:

  • the installation at the desired location in the building (installation must be possible in advance
    be clarified on the basis of a transport questionnaire to be completed by the customer)
  • the alignment of the cabinet
  • taking away the packaging material

Not included are:

  • - Use of crane or similar
  • - A transfer time longer than 30 minutes
... that our experts are always available to advise you?
Get in touch with us today. Whether by telephone on +49 6051 9220-0, by email at info@asecos.com or via live chat – we are here for you.

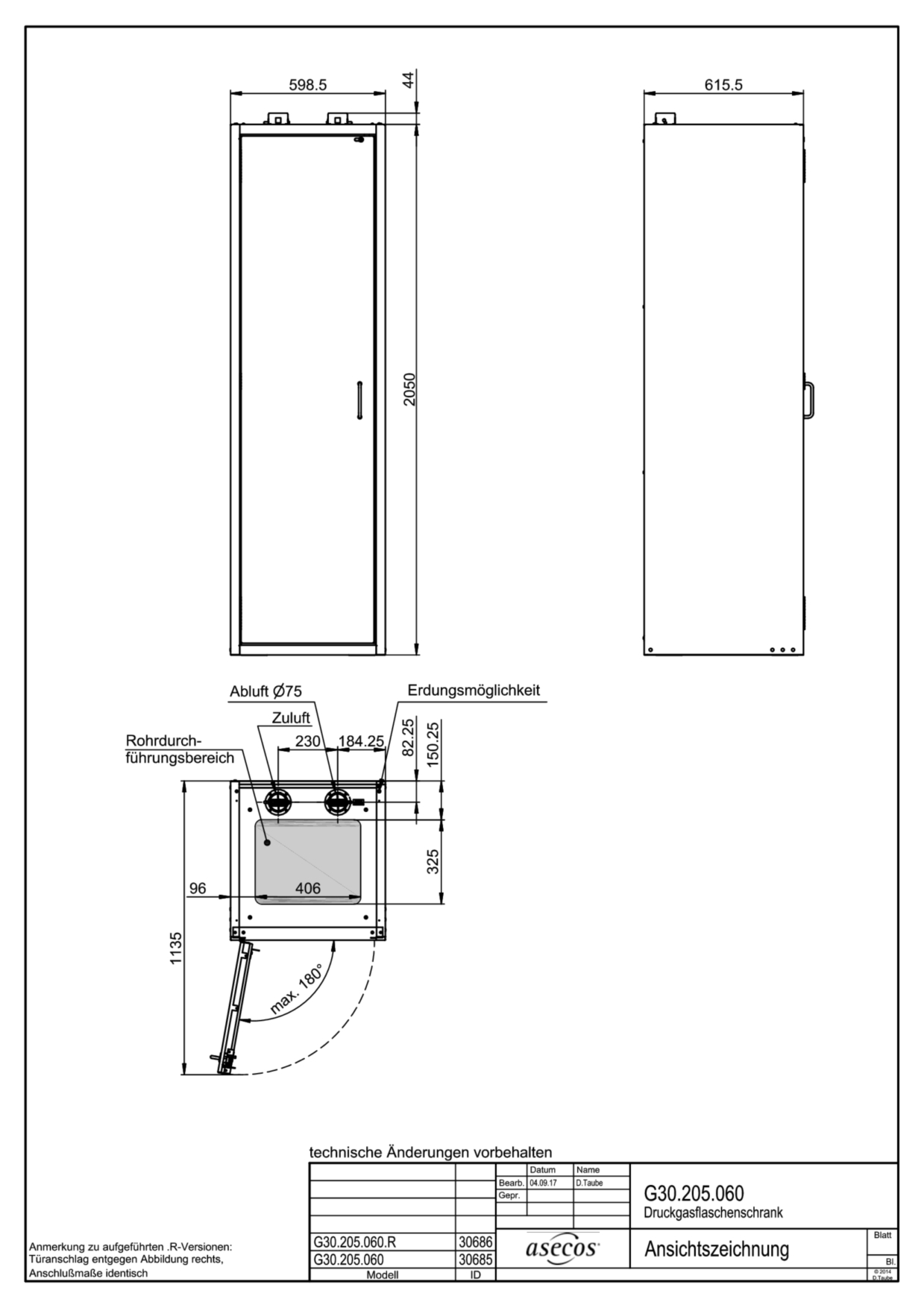

External dimensions W x D x H 598 x 616 x 2050 mm
Internal dimensions W x D x H 494 x 479 x 1874 mm
Depth with open doors 1,136.00 mm
Net weight configuration 292.50 kg
Fire resistance level 30 minutes
CE compliant yes (1)
GS certified yes (1)
According to standard EN 14470-2
According to standard EN 16121/16122
Automatic door closing system No (0)
Door open arrest system No (0)
Door opening angle 180 °
extraction air connection 75 DN
Differential pressure (10 times air change EK5/AK4) 5 Pa
Minimum exhaust air quantity 10 times 4 m³/h
Minimum exhaust air quantity 120 times 53 m³/h
Number of storage levels 1 piece
x 50-litre gas cylinders 2 piece
ecl@ss 14.0 40-06-01-11
UNSPSC code 24112402
Customs tariff number 94032080
GTIN 4054923056596
