Model

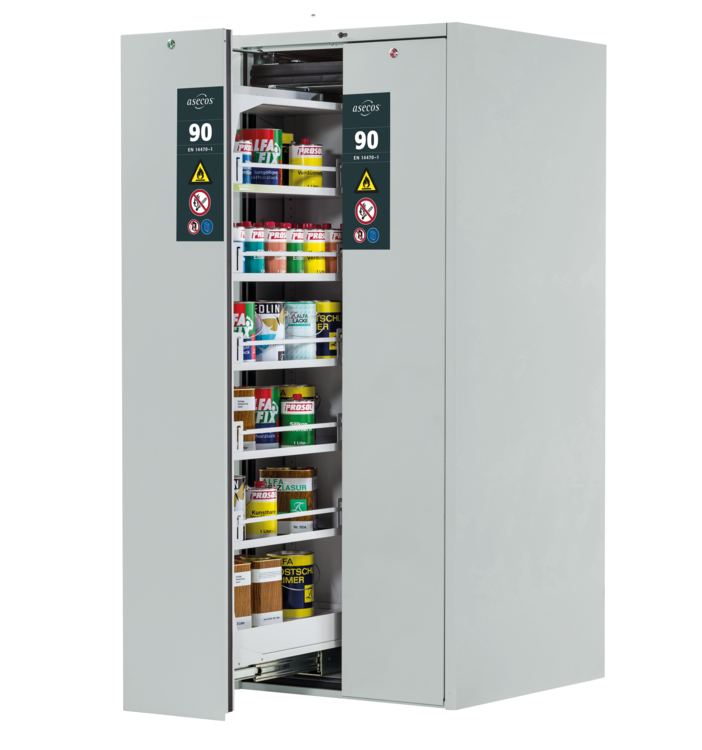

• Type 90 Safety storage cabinet
• Free standing unit with vertical drawers and automatic closing (TSA)
• With cylinder locking and locking state indicator
• Integrated adjusting aids to compensate uneven floor
• model line V-LINE
• model class V-MOVE-90
• Model V90.196.045.VDAC:0012
• Type tested in accordance with EN 14470-1
• DIN EN 16121/16122
• GS certified
• CE compliant
• Dimensions exterior: W x D x H (mm) 449 x 860 x 1966
• Dimensions interior: W x D x H (mm) 331 x 775 x 1750

Colour

• body colour light grey (RAL 7035)
• with vertical drawer in light grey (RAL 7035)

Interior equipment with

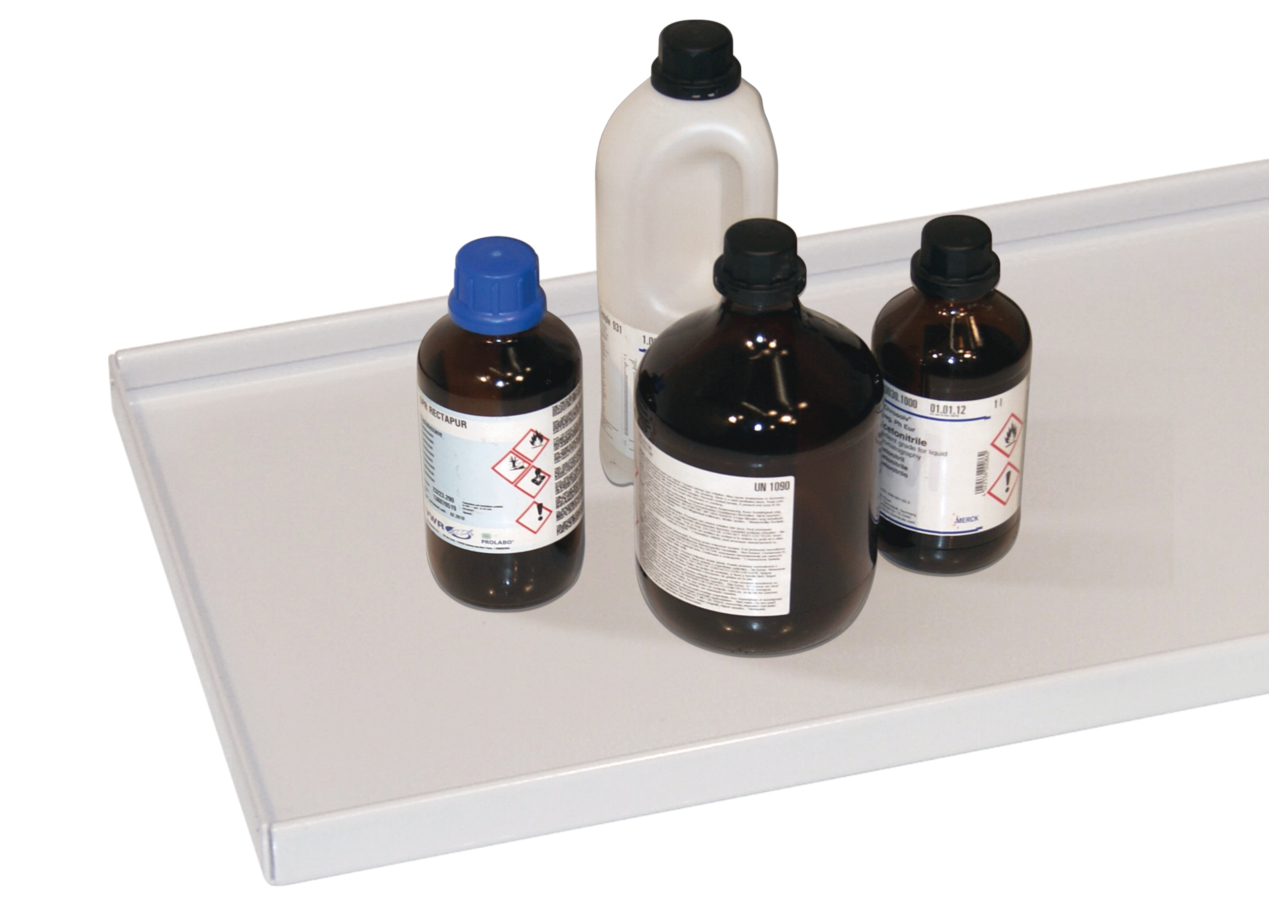

• 5 x shelf, load capacity: 50 kg, powder-coated sheet steel, RAL 7035 light grey
• 1 x perforated insert for StawaR, load capacity: 50 kg, powder-coated sheet steel, RAL 7035 light grey
• 1 x bottom collecting sump, capacity: 13 litres, powder-coated sheet steel, RAL 7035 light grey

CE compliant	yes (1)
GS certified	yes (1)
External dimensions W x D x H	449 x 860 x 1966 mm
Internal dimensions W x D x H	331 x 775 x 1750 mm
Weight	389,5 kg
Differential pressure (10 times air change)	5 Pa
Differential pressure (10 times air change EK5/AK4)	5 Pa
Minimum exhaust air quantity 10 times	5 m³/h
Distributed load	580 kg/m²
Maximum load	140 kg
Frequency	50/60 Hz
Nominal voltage	85-265 V
Maximum current consumption	0,5 A
Power consumption in standby mode	0,5 W
Power consumption in operation	50 W
Max. load of shelves	50.00 kg
Max. load of perforated insert	50.00 kg
Max. load of drawers	140 kg
Volume of pull-outs	125.00 litres
Capacity of bottom collecting sump	12.50 litres
ecl@ss 8.1	40-06-01-02
ecl@ss 9.1	40-06-90-90
ecl@ss 10.0	40-06-90-90
ecl@ss 11.0	40-06-01-01
ecl@ss 14.0	40-06-01-01
GTIN	4054923200630
Customs tariff number	94032080

• Technical drawing
• User manual for safety storage cabinets V-Line according to EN 14470-1
• CE declaration of conformity
• UKCA declaration of conformity
• Product data sheet
• 2D-data (DWG)
• 3D-data (BIM)
• 3D-data - closed door(s) (STP)
• 3D-data - open door(s) (STP)
• Volumentric flow charasteristics

Excellent products with special manufacturer warranty
extended manufacturer warranty of up to ten years in connection with the asecos PREMIUM tariff

NOTE:
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the asecos experts will be happy to help you further.
