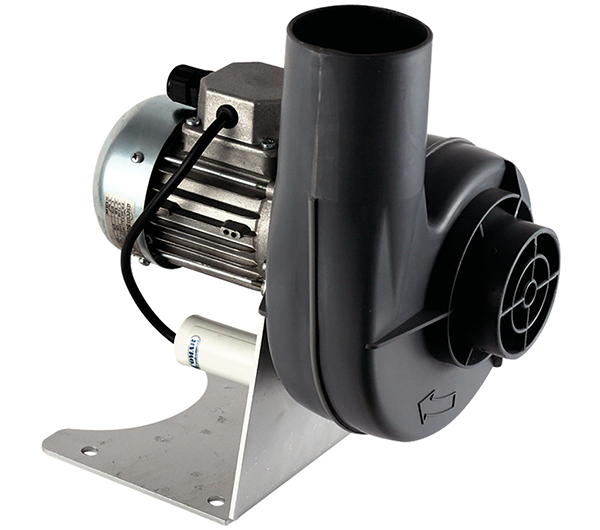

Fan model EH.VE.5793

Order No.:

5793

New configuration
Print

Configuration

  • fan EH.VE.5793
  • including shock absorber
  • made of PP
  • CE compliant
  • explosion-proof, ATEX label: CE EX II 3/_G Ex h IIB T3 Gc X
  • installation in explosion zone: outside any EX-zone
  • extraction from explosion zone: EX-zone 2
  • Protection class: IP 55
  • W x D x H (mm): 275 x 225 x 312

Technical Data

Width (external) 275 mm
Depth (external) 225 mm
Height (external) 312 mm
Weight 4.2 kg
Exhaust air monitoring No (0)
Speed 2,850 rpm
Frequency 50 Hz
Nominal voltage 230 V
Emission sound pressure level 45 dB
Maximum current consumption 4.5 A
Max. volume flow 250 m³/h
Min. volume flow 60 m³/h
Potential-free alarm contact No (0)
ecl@ss 10.0 22-41-09-90
ecl@ss 9.1 22-41-09-90
ecl@ss 5.1.4 22-41-09-90
ecl@ss 11.0 22-41-09-90
ecl@ss 8.1 22-41-09-90

Downloads

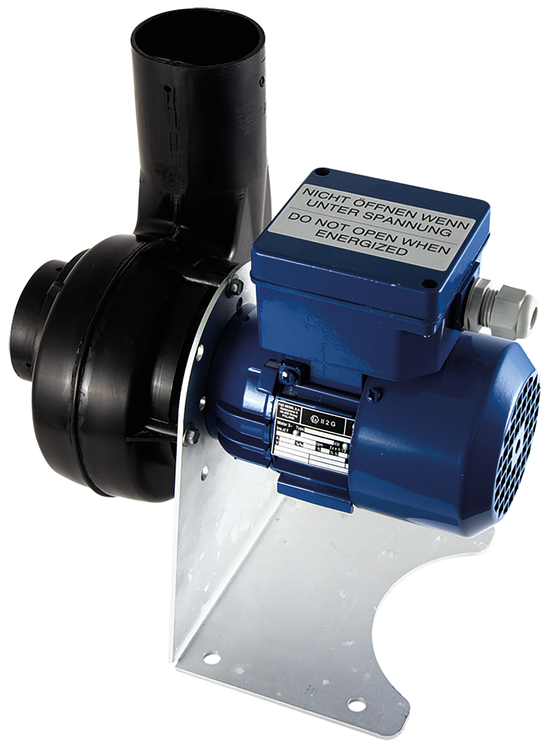

Alternative product
