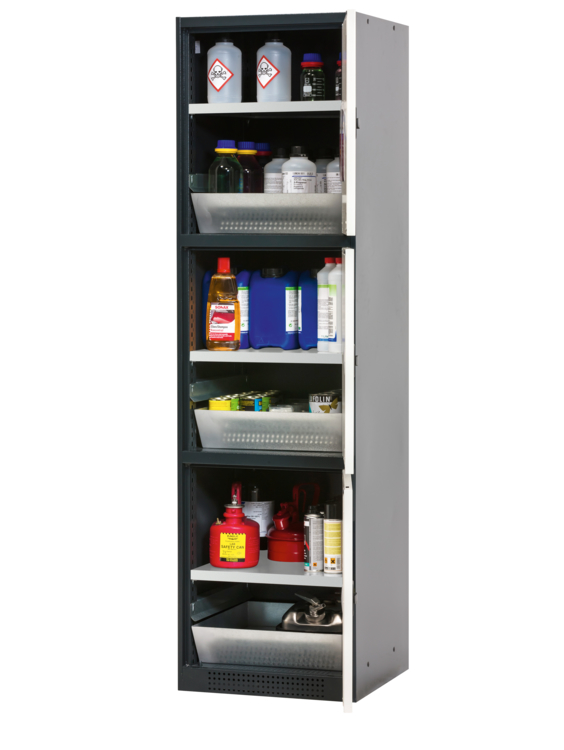

Cabinet for chemicals CS-CLASSIC-MultiRisk model CS.195.054.MH.3WDR
Order No.:
30804-050-30810
Configuration
Model
Colour
Interior equipment with
- MultiRisk-Cabinet for chemicals
- Free standing unit with 3 wing doors (right hinged)
- With cylinder locking (integrated in turning handle)
- Version horizontal dividing wall
- Integrated adjusting aids to compensate uneven floor
- model line C-LINE
- model class CS-CLASSIC-MultiRisk
- Model CS.195.054.MH.3WDR
- DIN EN 16121/16122

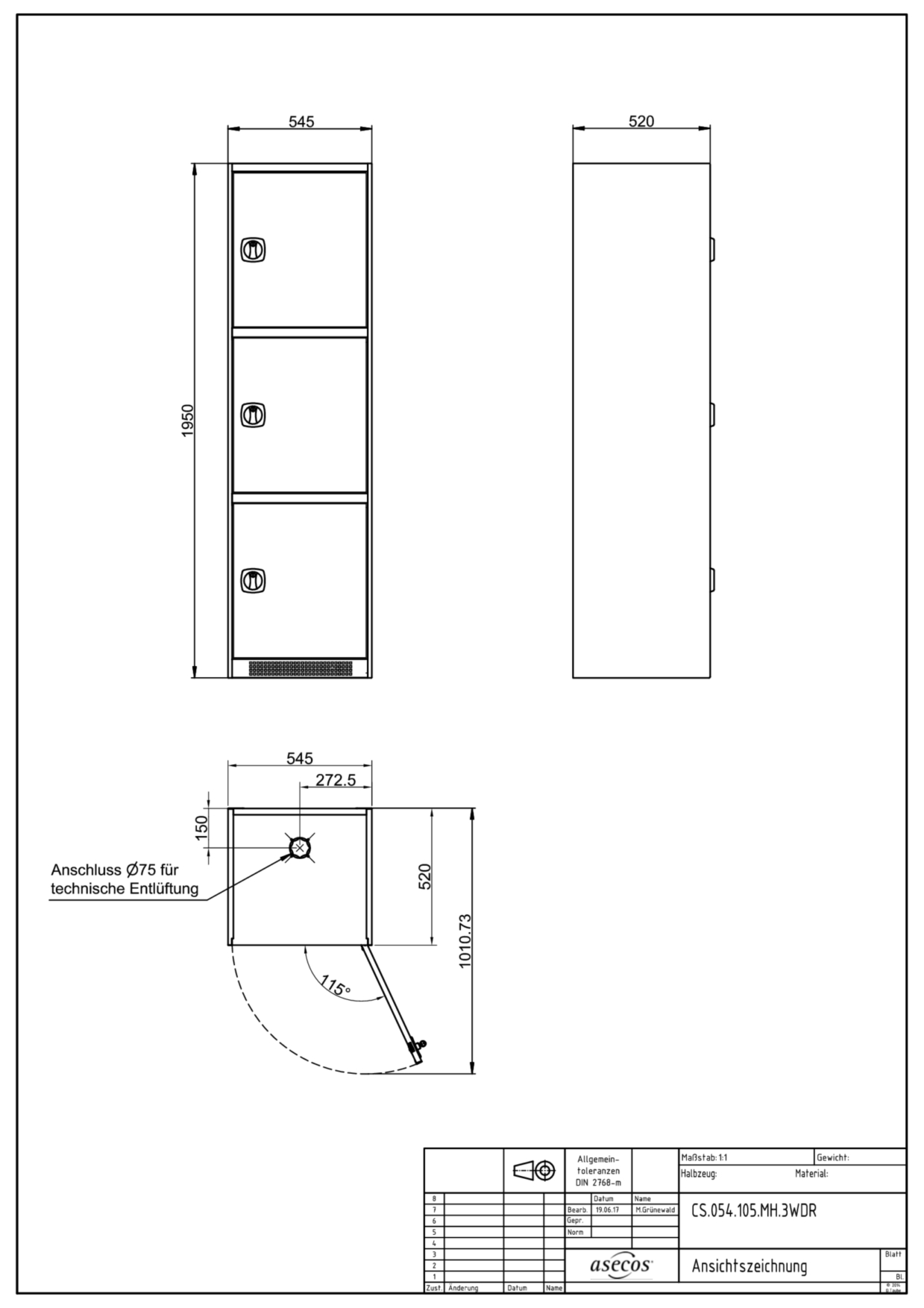

- Dimensions exterior: W x D x H (mm) 545 x 520 x 1950
- Dimensions interior: W x D x H (mm) 486 x 495 x 595
- body colour anthracite grey (RAL 7016)
- with wing doors in pure white (RAL 9010)
- 3 x shelf, load capacity: 50 kg, sheet steel galvanised
- 3 x bottom collecting sump, capacity: 19 litres, sheet steel galvanised

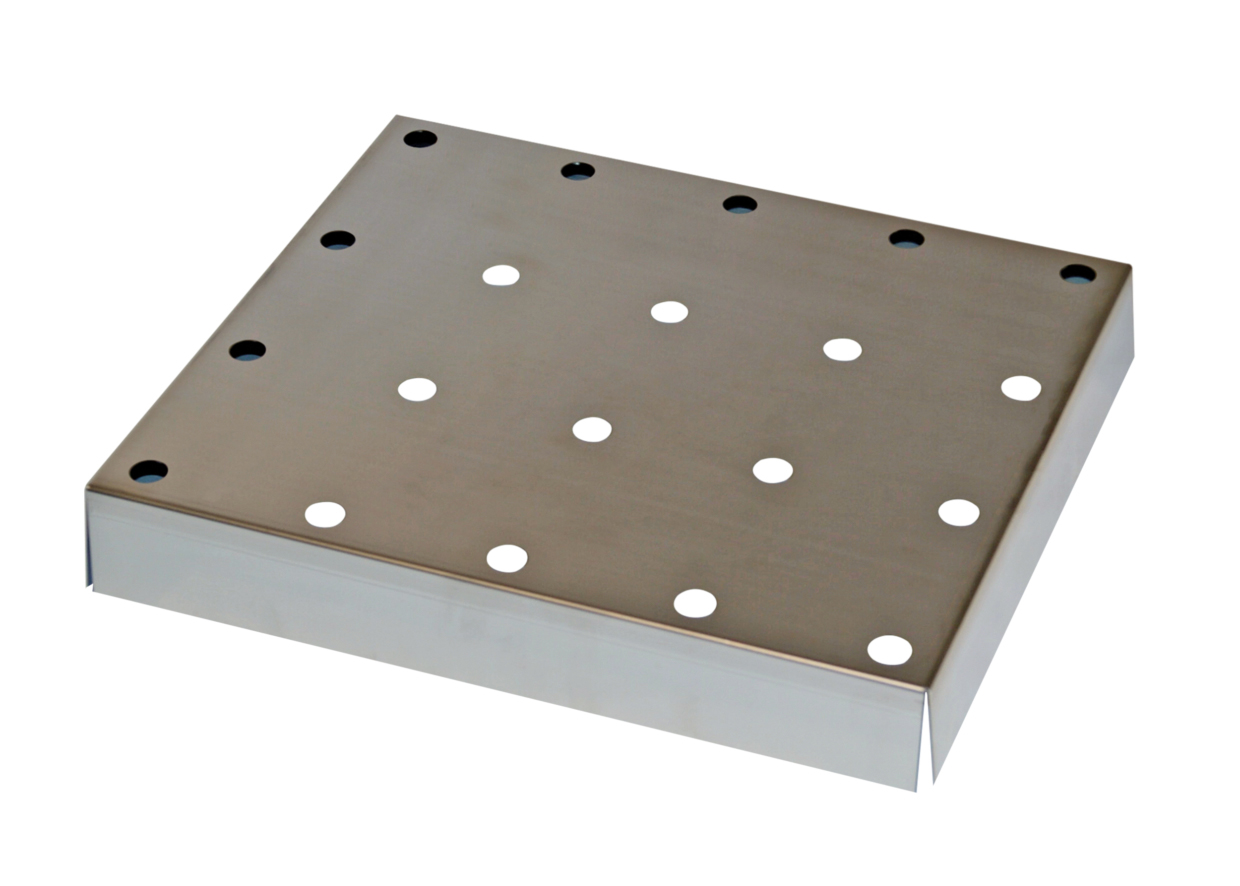

- 3 x perforated insert, load capacity: 50 kg, sheet steel galvanised
Technical Data
| CE compliant | No (0) |
| GS certified | No (0) |
| External dimensions W x D x H | 545 x 520 x 1950 mm |
| Internal dimensions W x D x H | all compartments: 486 x 495 x 595 mm |
| Weight | 101 kg |
| Differential pressure (10 times air change) | 1 Pa |
| Minimum exhaust air quantity 10 times | 4 m³/h |
| Distributed load | 786 kg/m² |
| Maximum load | 600 kg |
| Max. load of shelves | 50.00 kg |
| Max. load of perforated insert | 50.00 kg |
| Capacity of bottom collecting sump | 19.00 litres |
| ecl@ss 5.1.4 | 21-10-04-07 |
| ecl@ss 8.1 | 40-06-01-03 |
| ecl@ss 9.1 | 40-06-90-90 |
| ecl@ss 10.0 | 40-06-90-90 |
| ecl@ss 11.0 | 40-06-01-12 |
| GTIN | 4054923050303 |
| Customs tariff number | 94032080 |
