Product Configurator

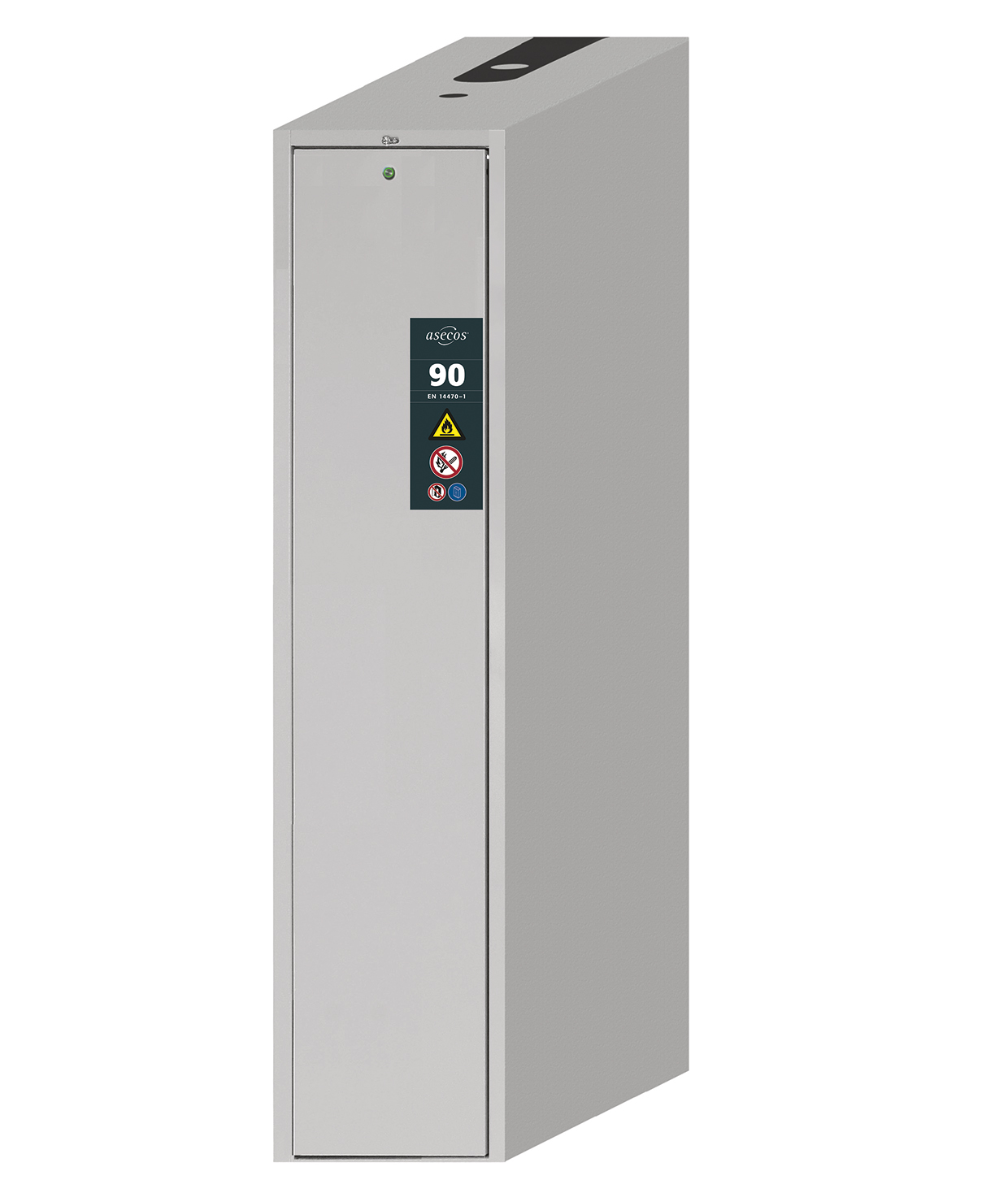

Safety storage cabinet V-MOVE-90 model V90.196.045.VDAC:0012
Order No.:
35034-001-35101
Recommended retail price:
{{ preis.preis | currency }} - {{ preis.text }}
Configuration
Model
Colour
Interior equipment with
- Type 90 Safety storage cabinet
- Free standing unit with vertical drawers and automatic closing (TSA)
- With cylinder locking and locking state indicator
- Integrated adjusting aids to compensate uneven floor
- model line V-LINE
- model class V-MOVE-90
- Model V90.196.045.VDAC:0012
- Type tested in accordance with EN 14470-1
- DIN EN 16121/16122
- GS certified
- CE compliant
- Dimensions exterior: W x D x H (mm) 449 x 860 x 1966
- Dimensions interior: W x D x H (mm) 331 x 775 x 1750
- body colour light grey (RAL 7035)
- with vertical drawer in light grey (RAL 7035)

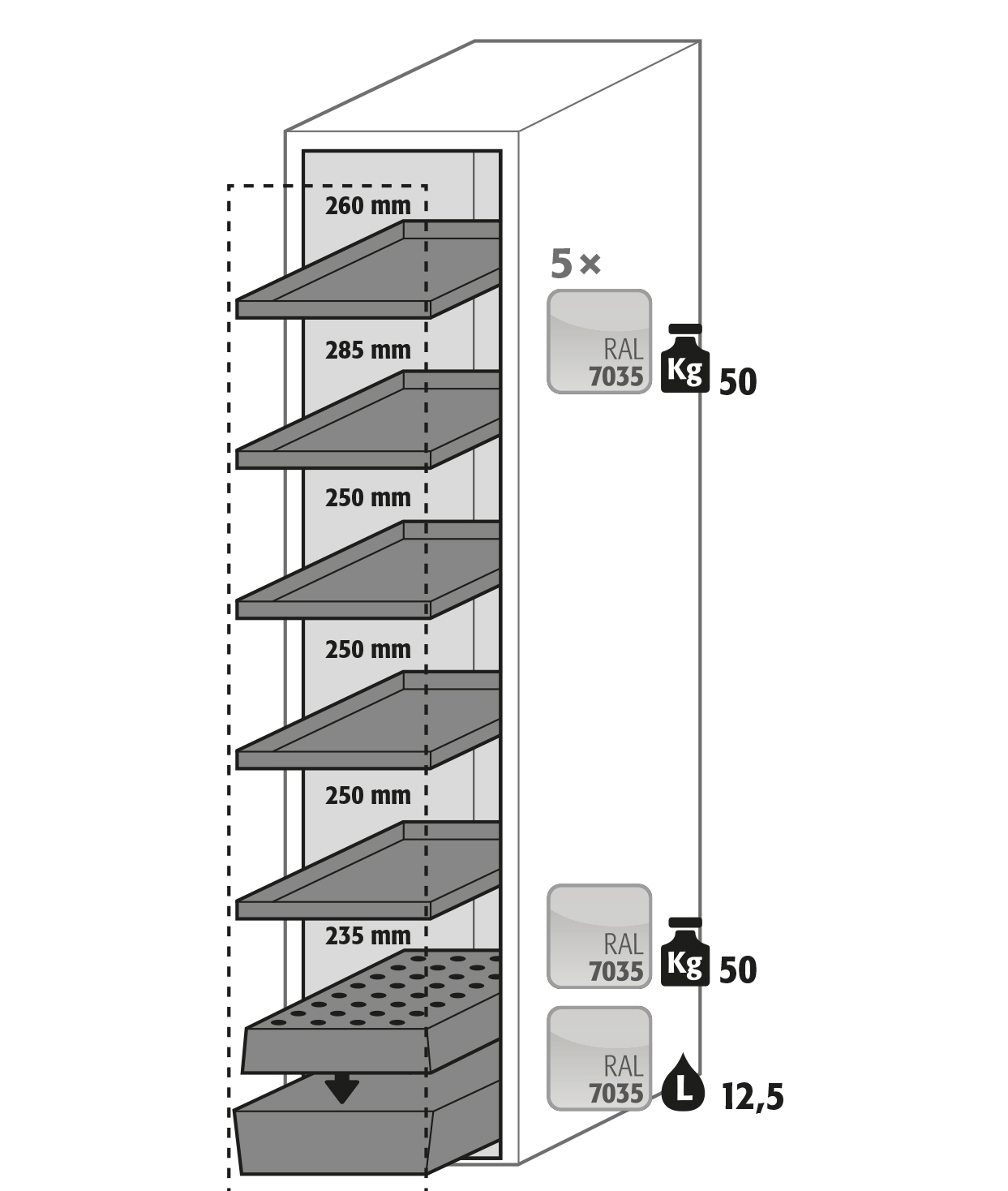

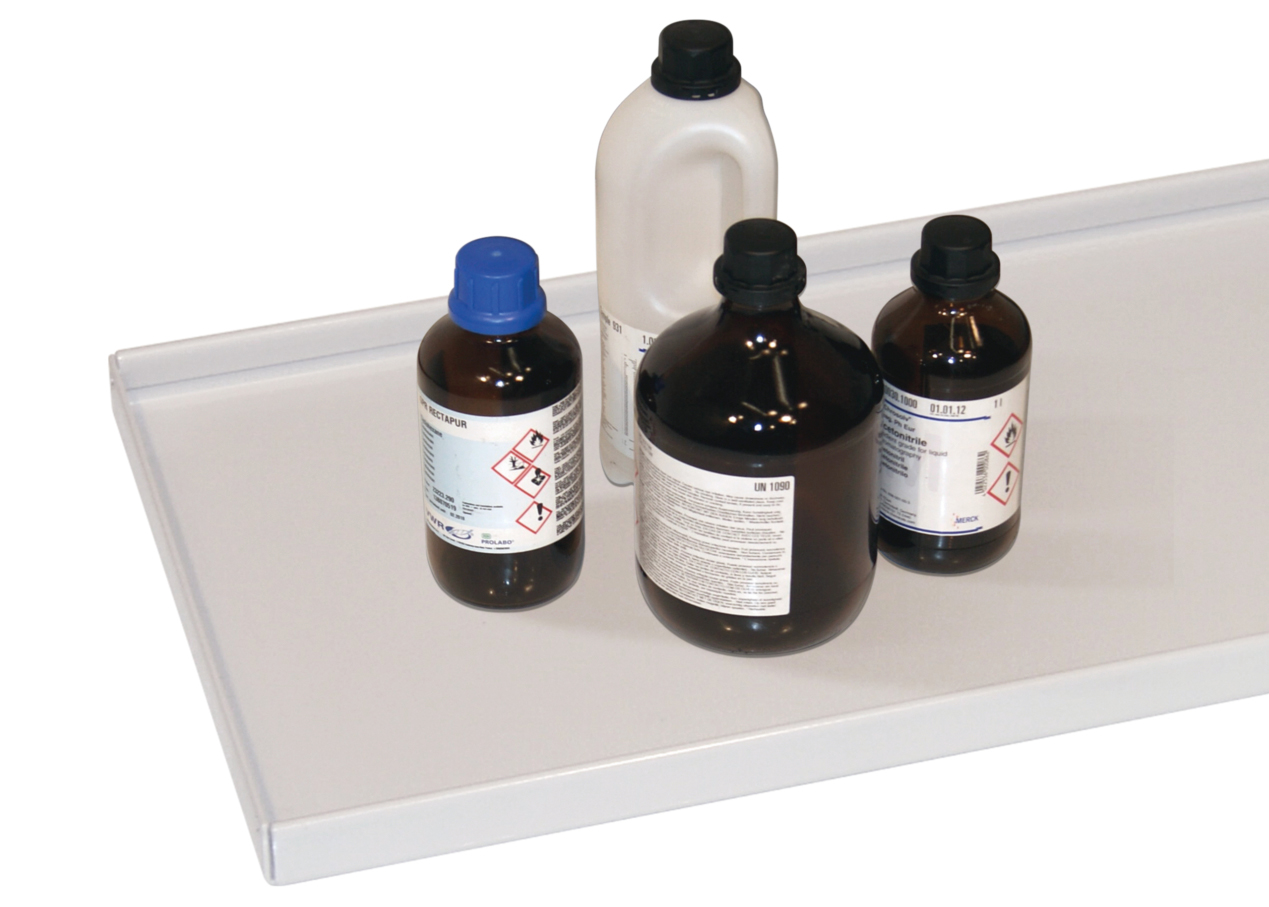

- 5 x shelf, load capacity: 50 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x perforated insert for StawaR, load capacity: 50 kg, powder-coated sheet steel, RAL 7035 light grey
- 1 x bottom collecting sump, capacity: 13 litres, powder-coated sheet steel, RAL 7035 light grey
Technical Data
| CE compliant | yes (1) |
| GS certified | yes (1) |
| External dimensions W x D x H | 449 x 860 x 1966 mm |
| Internal dimensions W x D x H | 331 x 775 x 1750 mm |
| Weight | 389,5 kg |
| Differential pressure (10 times air change) | 5 Pa |
| Differential pressure (10 times air change EK5/AK4) | 5 Pa |
| Minimum exhaust air quantity 10 times | 5 m³/h |
| Distributed load | 580 kg/m² |
| Maximum load | 140 kg |
| Frequency | 50/60 Hz |
| Nominal voltage | 85-265 V |
| Maximum current consumption | 0,5 A |
| Power consumption in standby mode | 0,5 W |
| Power consumption in operation | 50 W |
| Max. load of shelves | 50.00 kg |
| Max. load of perforated insert | 50.00 kg |
| Max. load of drawers | 140 kg |
| Volume of pull-outs | 125.00 litres |
| Capacity of bottom collecting sump | 12.50 litres |
| ecl@ss 8.1 | 40-06-01-02 |
| ecl@ss 9.1 | 40-06-90-90 |
| ecl@ss 10.0 | 40-06-90-90 |
| ecl@ss 11.0 | 40-06-01-01 |
| ecl@ss 14.0 | 40-06-01-01 |
| GTIN | 4054923200630 |
| Customs tariff number | 94032080 |
