Gas cylinder cabinet G-OD model GOD.215.100.WDHW

Order No.:

30735-015-32672

Recommended retail price:

{{ $select.selected.preis | currency }} - {{ $select.selected.text }}
{{ preis.preis | currency }} - {{ preis.text }}
New configuration
Print

Configuration

Model

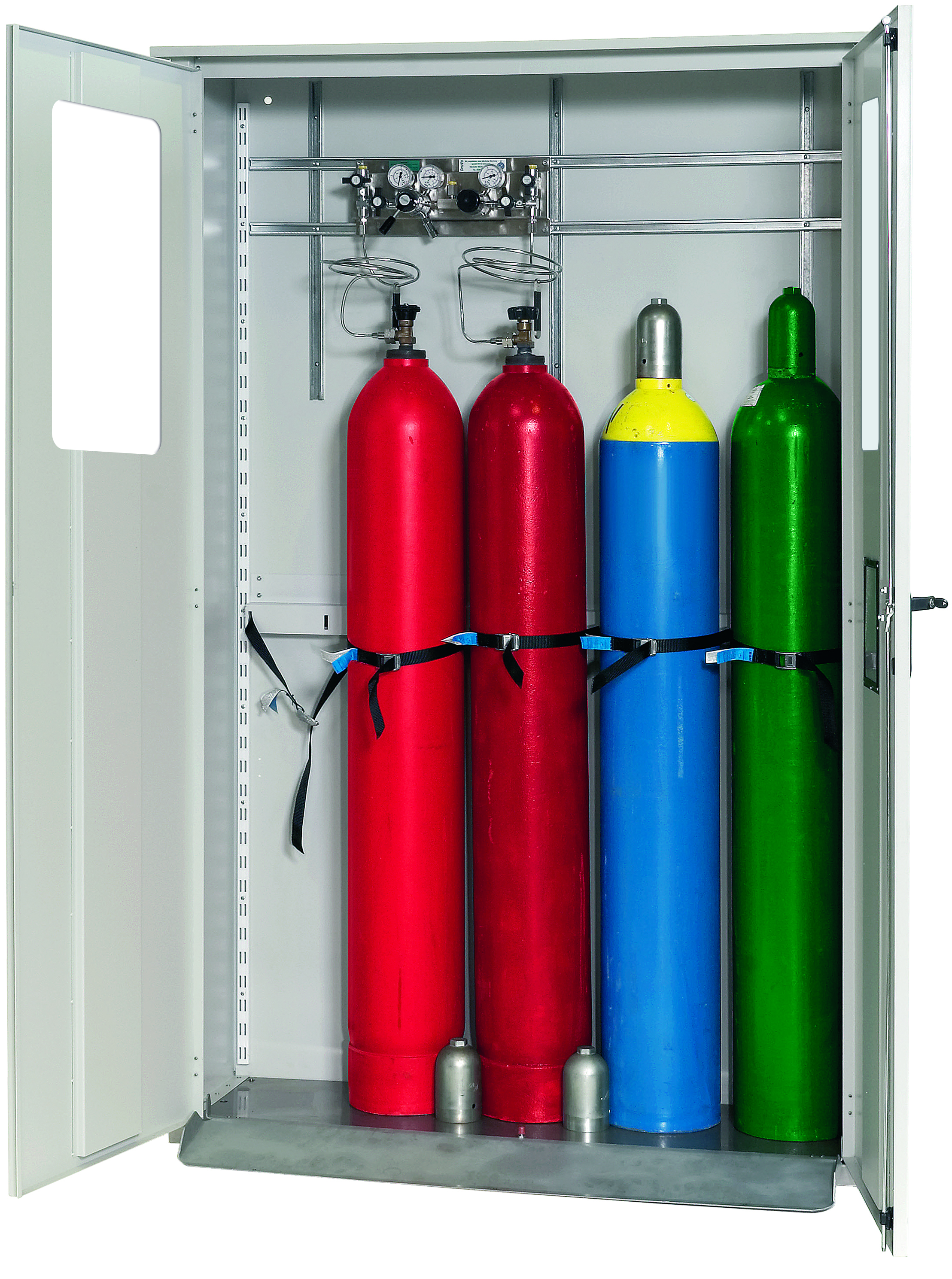

  • Gas cylinder cabinet
  • Free standing unit with wing doors, hinged window

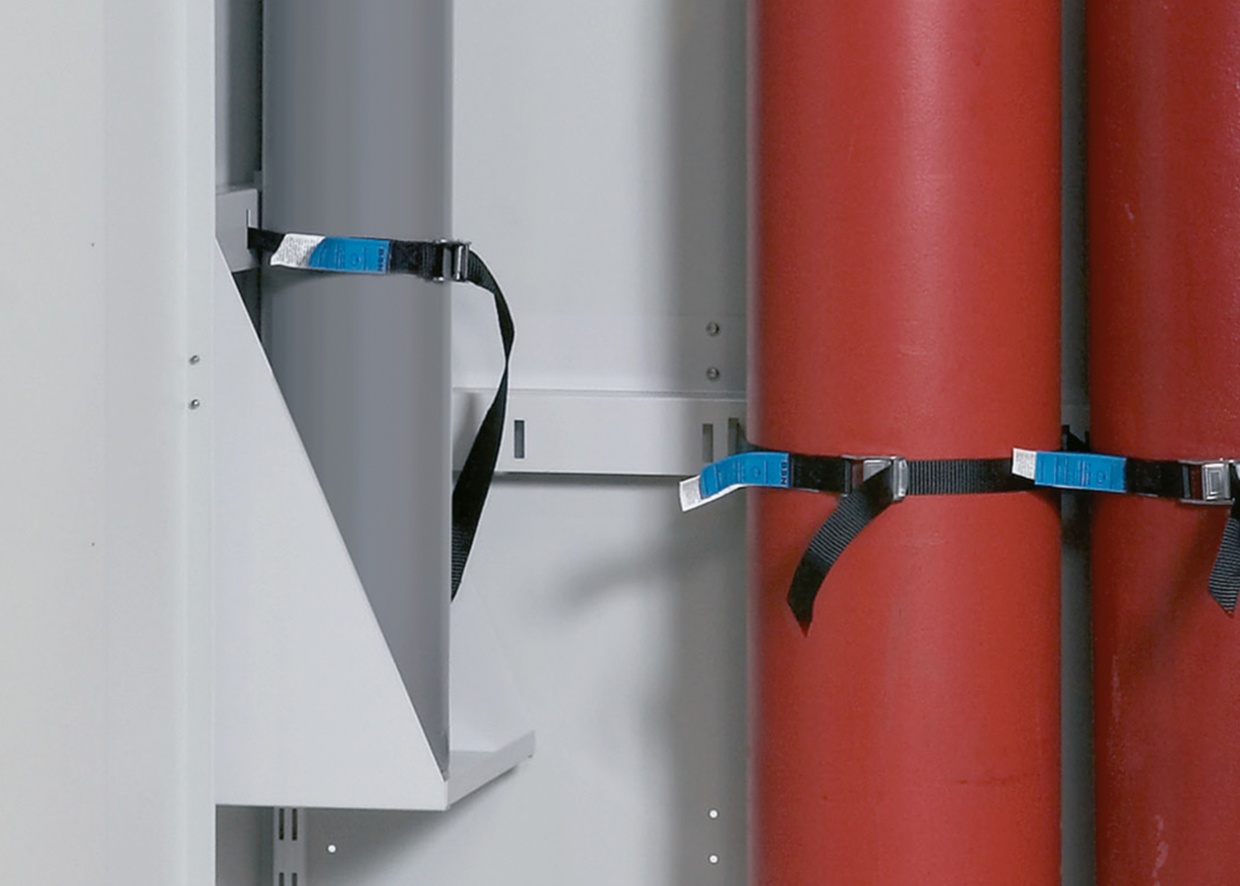

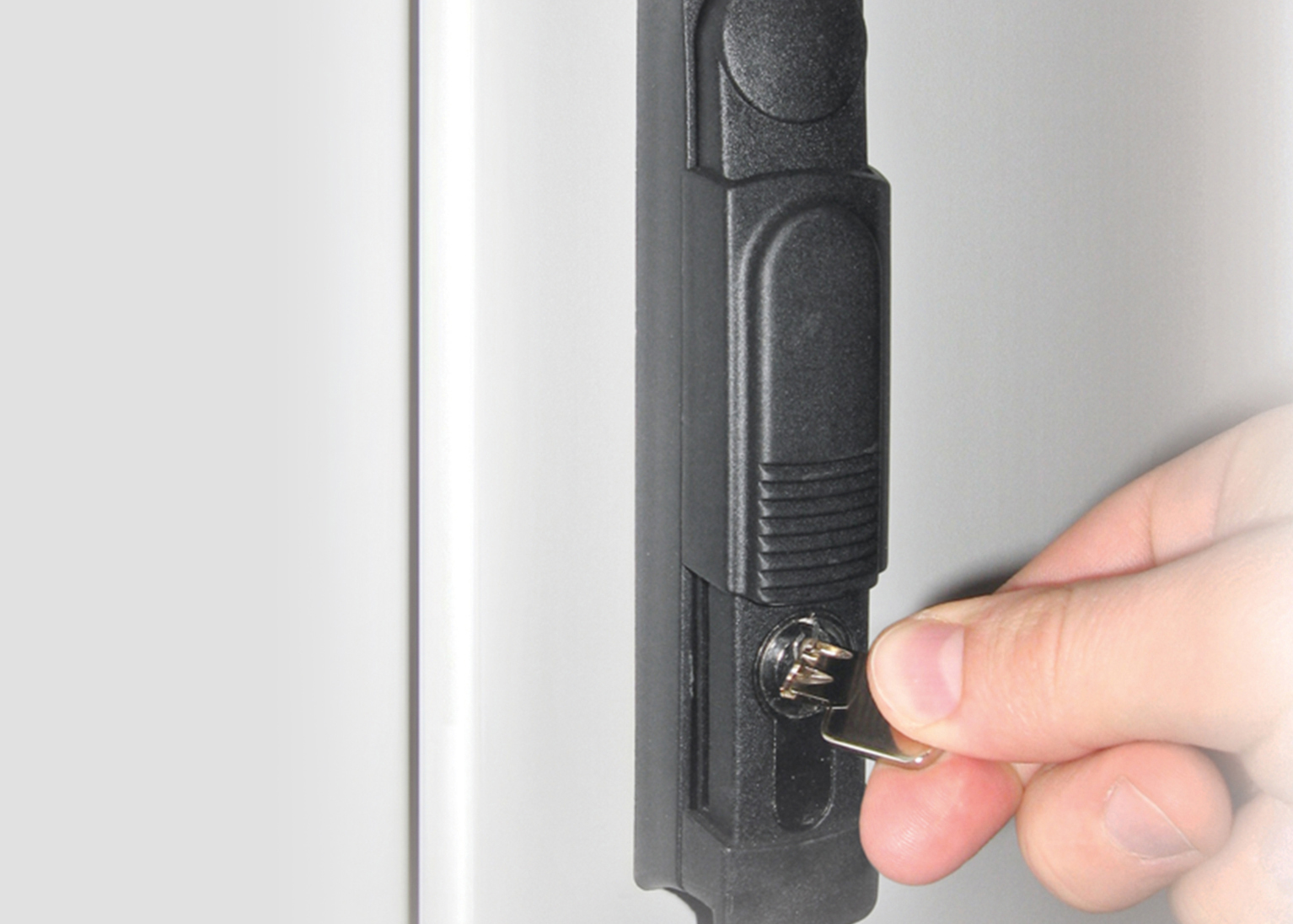

  • With cylinder locking (integrated in turning lever)
  • Integrated adjusting aids to compensate uneven floor
  • model line G-LINE
  • model class G-OD
  • Model GOD.215.100.WDHW
  • Dimensions exterior: W x D x H (mm) 1006 x 400 x 2149
  • Dimensions interior: W x D x H (mm) 995 x 370 x 2070
  • with hinged window and standard interior equipment for 3 x 50 litre gas cylinders
Colour
  • body colour light grey (RAL 7035)
  • with glass-paneled wing doors in light grey (RAL 7035)
Interior equipment with

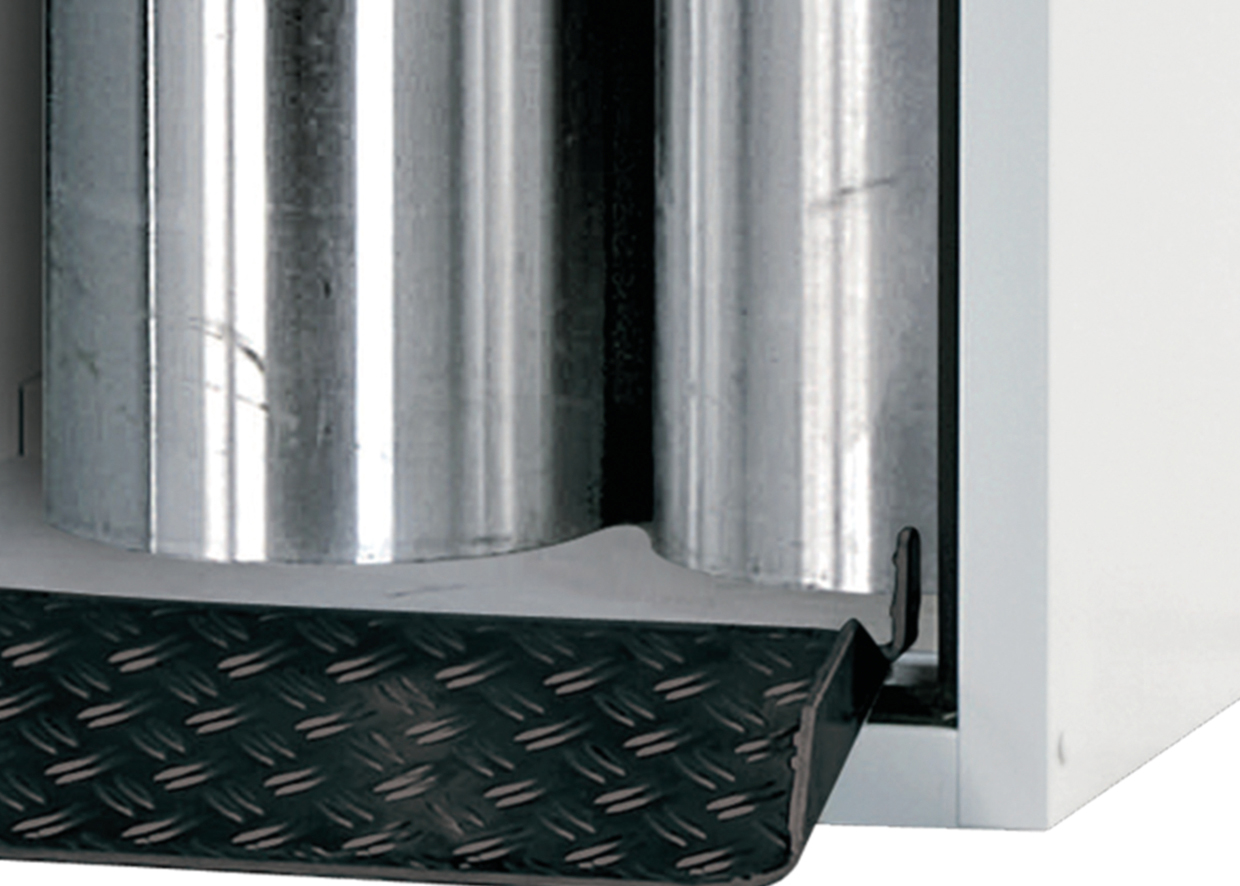

  • 1 x rolling ramp, sheet steel painted

Technical Data

External dimensions W x D x H 1006 x 400 x 2149 mm
Internal dimensions W x D x H 995 x 370 x 2070 mm
Weight 135,5 kg
Minimum exhaust air quantity 10 times 8 m³/h
Differential pressure (10 times air change) 5 Pa
Distributed load 509 kg/m²
Maximum load 600 kg
ecl@ss 5.1.4 21-10-04-06
ecl@ss 9.1 40-06-90-90
ecl@ss 10.0 40-06-01-11
ecl@ss 11.0 40-06-01-11
ecl@ss 8.1 40-06-30-05

Downloads

Accessories

Document holder DIN A5

30793

{{ 41 | currency }}

Rolling ramp

30698

{{ 166 | currency }}

Alternative product
